60´Gallows turntable for HOn3

Graff Jan 7, 2016

  1. Graff

    Graff TrainBoard Member

    287
    950
    24
    Hi!
    This is my new project.
    The Model Masterpieces D&RG 60' Gallows turntable in HOn3.

    [​IMG]

    I will, also build the Como Roundhouse to complete the scene.
    The drive for the turntable will be a step motor with full indexing. It is a system developed by a friend of mine and very fool proof!
    [:)]

    I bought this kit second hand, and it misses the spider gear housing...
    I will try to make a new by 3D printing it.

    This is a good plan showing how I will do the drive:
    [​IMG]
    (courtesy of Carrie Creek)

    I started the build by staining and adding grain to the wood. The stain is Isopropyl alcohol and wiper fluid mixed with vallejo burnt umber and black.

    [​IMG]

    After it dries, I will lightly sand them to remove the fuzz.
    More to come soon!

    FriscoCharlie likes this.
  2. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,560
    22,735
    653
    Wiper fluid, as used for vehicle windshield wipers?

    What is the largest sized locomotive which would fit on 60 feet?

  3. Graff

    Graff TrainBoard Member

    287
    950
    24
    Yes, Windshield Wiper fluid.
    The largest size is the largest on the D&RGW. A Mikado K-36 will fit with a bit of coupler overhang.

  4. customNscaler

    customNscaler TrainBoard Member

    155
    5
    15
    What are you using for the turntable pit?

  5. Graff

    Graff TrainBoard Member

    287
    950
    24
    The pit will be the cutout in the plywood base covered with ties, or maybe stone.

  6. Graff

    Graff TrainBoard Member

    287
    950
    24
    I've come a little further on the way. The Nut Bolt Washer castings are mostly in place :
    [​IMG]

    [​IMG]

    I just had to see how my biggest locomotive fits :
    [​IMG]
    Now its time to spike some rails in place.
    :)

    FriscoCharlie, ArtinCA and BoxcabE50 like this.
  7. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,560
    22,735
    653
    Nice. Quite time and weather worn. Looks very real. (y)

  8. Graff

    Graff TrainBoard Member

    287
    950
    24
    Thanks!
    Just one more update before bedtime (this is after all Europe, a tad different time zone...)
    [​IMG]
    Filed grooves for the cables.

    [​IMG]
    Soldered the wires to the Code 70 Micro Engineering rails.

    [​IMG]
    The rails spiked and glued!
    :)
    I use Railway engineering rollee holders.

    FriscoCharlie and ArtinCA like this.
  9. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,560
    22,735
    653
    Do you have a Kadee spiker? Or?

  10. Graff

    Graff TrainBoard Member

    287
    950
    24
    No, I hand spike.
    :)
    I have a flat needle nose plier that I have filed a groove in to hold the spikes.

  11. ArtinCA

    ArtinCA TrainBoard Member

    901
    218
    24
    Thinner for acrylic paints Ken. Works really well and it's cheap.

  12. Graff

    Graff TrainBoard Member

    287
    950
    24
    The gallow temporarily installed:
    [​IMG]

    FriscoCharlie, lnxlnx and ArtinCA like this.
  13. Ironhorseman

    Ironhorseman April, 2018 Staff Member In Memoriam

    4,717
    113
    66
    That really looks good, Graff. Is this your own design, or is it something that you have the plans for?

  14. customNscaler

    customNscaler TrainBoard Member

    155
    5
    15
    Your turntable is coming along amazingly! You have inspired me to get my engine facility started on my layout I am going to be using the Durango 65' turntable from kitwood hill models. Keep up the great work!

  15. JimJ

    JimJ Staff Member

    1,574
    2,271
    51
    Beautiful modeling! You're doing that kit some justice.

  16. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,560
    22,735
    653
    Bill-

    In his first post: "Model Masterpieces D&RG 60' Gallows turntable in HOn3."

  17. Graff

    Graff TrainBoard Member

    287
    950
    24
    Thanks!
    The base is started!
    ;)

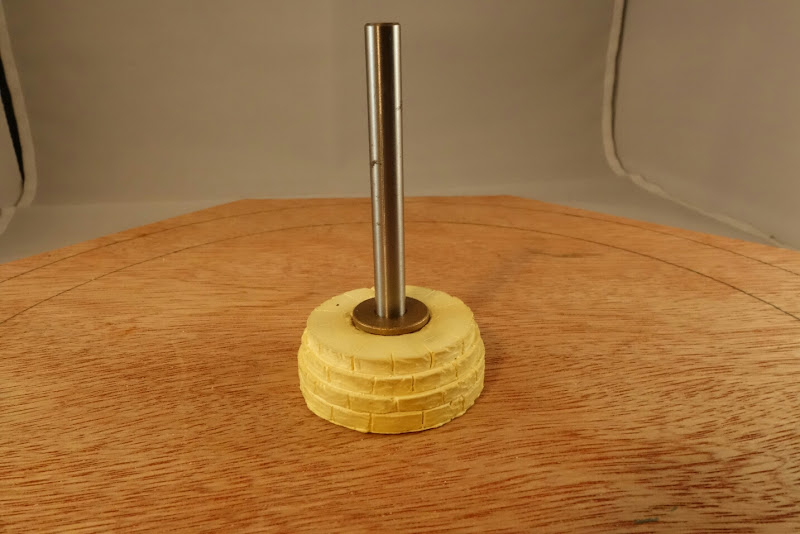

    8 mm plywood base. I've glued the piedestal on the top and a piece of pine underneath. I drilled the holes for the bearings with my pillar drill to get the hole in plumb.
    [​IMG]

    The axle will be replaced with a stainless tube.
    [​IMG]

    The brackets that holds the tie rods are in place.
    [​IMG]

    Had to see how it looks....
    [​IMG]

    The pit wall is to be built using ties. And the pit rail has to be laid. I use code 40 in the pit..

    FriscoCharlie and bremner like this.
  18. Graff

    Graff TrainBoard Member

    287
    950
    24
    Late last night I checked the Turntable and saw that the axle wasn't lining up!?!
    That despite using a drill press... probably the bushings tilted a bit when gluing them in at first?
    I made a jig, removed the bushings and lined everything up.
    [​IMG]
    Now it is correct!
    I've also built the turntable pit wall. I used cork up to the pit ring level.
    Then I glued stained ties up to the top.
    The ties fit perfectly, I didn't have to trim any of them to fit!

    FriscoCharlie likes this.
  19. Graff

    Graff TrainBoard Member

    287
    950
    24
    A small update:
    The cork wasn't totally flat for the pit rail, so I mounted a template/scraper on my centre jig. I then spackled the surface and rotated the template to get a flat surface. It worked great!
    [​IMG]

    I made some ties for the pit rail:
    [​IMG]

    I glued them using my jig to get them to point towards the centre.
    [​IMG]
    As you can see in the picture above, I made another template on the jig.
    This one were to make the slope in the pit.
    I mixed some very soupy plaster which I poured in the pit at the same time as I rotated the template.
    After a minute or two, it began to set. I then removed the template (which had a roll of excess plaster on one side).
    This is how it looked;
    [​IMG]

    I added some thin paint to prepare for the gravel and sand:
    [​IMG]

    The piedestal was painted as well.
    [​IMG]

  20. JimJ

    JimJ Staff Member

    1,574
    2,271
    51
    Looks like a pumpkin pie! Mmm.
