Sixth Annual International Spring Layout Party

okane Jan 24, 2008

  1. riverotter1948

    riverotter1948 TrainBoard Member

    246
    0
    13
    First: there is some incredible modeling work being done & shown in this thread!

    My goals are much more modest. However, I was really proud of myself for getting my first week's goal done (and working) ahead of schedule:

    [​IMG]

    [​IMG]

    I was all ready to move on to Week 2's (as yet unannounced) goal of getting the turnouts installed on the West end of this open staging yard (the pics above are at the East end) after a short operating session (I have a working 90' long point-to-point single track in place), during which I realized I wasn't going to be satisfied with a single-track main line ... so I decided to revise the track plan on the fly to add a 2nd main line. So now Week 2's goal is to lay in the 2nd mainline track though the staging yard (which will now be 2 staging yards, one for each main line) and get the East end turnouts realigned. Better now than later when more stuff would have to be ripped out.

    Keep up the good work, folks!

  2. Cleggie

    Cleggie TrainBoard Member

    525
    71
    18
    Today is a public holiday over here so I took the opportunity to do some more work on my layout.

    [​IMG]

    The paint and glue are still drying on this trackside cliff

    [​IMG]

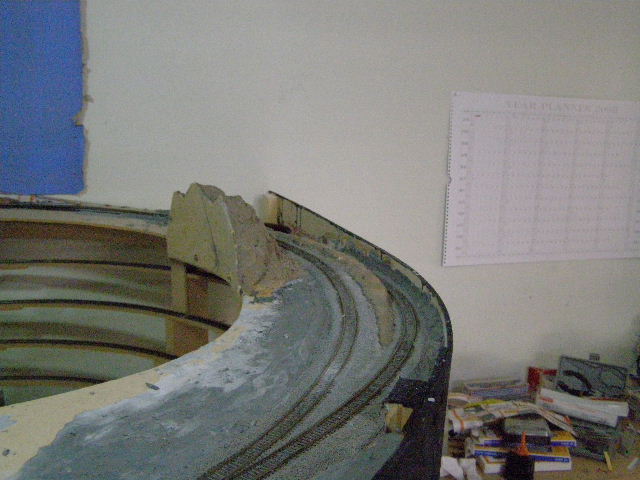

    The veiw toward the Helix. I will paint all the bare woodwork later.

    [​IMG]

    I couldn't help myself I just had to add some color too much grey is so depressing.

  3. ElvisTie

    ElvisTie TrainBoard Member

    52
    0
    17
    :thumbs_up: Great job everyone!

    I started adding some roofing material to the roundhouse roof by using some corrguated card stock I found at the local arts & crafts store.

    A view before the new roof was added
    [​IMG]

    Here is the new material applied to the front roof side
    [​IMG]

    I also ballasted the right 1/2 of the wye track leading to the turntable, but I don't have any images to post of that just yet.

    Ryan

  4. Cleggie

    Cleggie TrainBoard Member

    525
    71
    18
    Nice find Ryan, looks great... I wonder if there is something similar that will suit N scale? Hmmm...

  5. riverotter1948

    riverotter1948 TrainBoard Member

    246
    0
    13
    Ryan, I don't think I've ever seen a Wye that terminated in a turntable on a model RR layout before. Ingenious!

  6. ElvisTie

    ElvisTie TrainBoard Member

    52
    0
    17

    Layout space limitations resulted in having the wye terminate at the turntable, it was the only way to get it all to fit. I wanted to preserve the turntable and incorporate a wye too, so this was the compromise. I suppose that the wye switch could have been eliminated if I had the two separate wye lead tracks enter the turntable at two individual points. I had the wye switch on hand and wanted to use it, so it all came together.

  7. riverotter1948

    riverotter1948 TrainBoard Member

    246
    0
    13
    2/7/08 Progress Report

    2/7/08 Progress Report

    What I want to accomplish in the 7 weeks of this Layout Party:
    Lay all the track for my six-through-track open staging yard. At
    the beginning, the single mainline had been laid and two
    turnouts for one end of the staging yard were in place.

    What I hoped to accomplish in the week of Feb 1 - Feb 7:
    Lay the remaining 4 turnouts at the east end.

    What I actually accomplished: I decided to add a second main line,
    so my previous work had to be undone. [Apropos of nothing, in
    quilting this is called "unsewing".] However, I did get the 2nd main
    line laid through the staging yard area, and realigned & completed
    installation of all the turnouts on the east end. In effect, I now
    will have two staging yards: one three-track staging yard for the
    northern main line and one three-track staging yard for the
    southern main line.

    [​IMG]

    What I hope to accomplish in the coming week (Feb 8 - 14):
    Lay the turnouts at the west end of the staging yard.

    If I continue to complete my proposed accomplishments for this
    project on schedule, I may be able to move forward to one or
    another of the many projects that need attention on this new
    layout project.

    In the meantime, the power-routing turnouts are working as
    advertised, so I can perform some further track testing with
    multiple switch engines in the staging yard(s).

  8. okane

    okane TrainBoard Supporter

    1,923
    856
    42
    My 2008 Layout Party Objectives

    My layout has been changed innumerable times since the last Layout party. At least the Benchwork was completed at that time. Since then to be honest I have not done much.

    Over the next 7 weeks I plan to complete one peninsula with at least some scenery. I also would like to complete the wiring so that I can get some trains running around the layout. Thats it!!!!

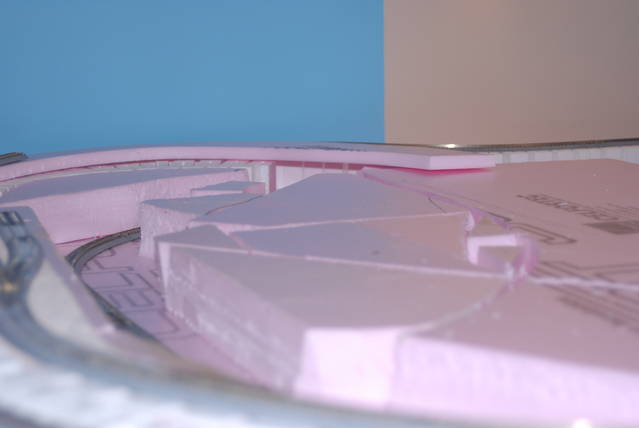

    To start here is a picture of the peninsula as it existed last week.

    http://www.trainboard.com/railimages/data/1756/DSC_0070.JPG

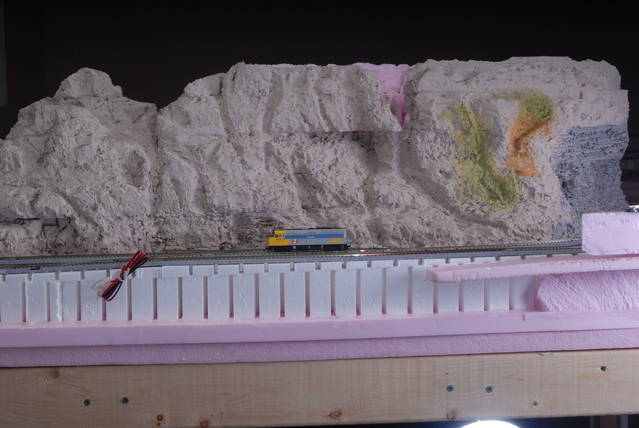

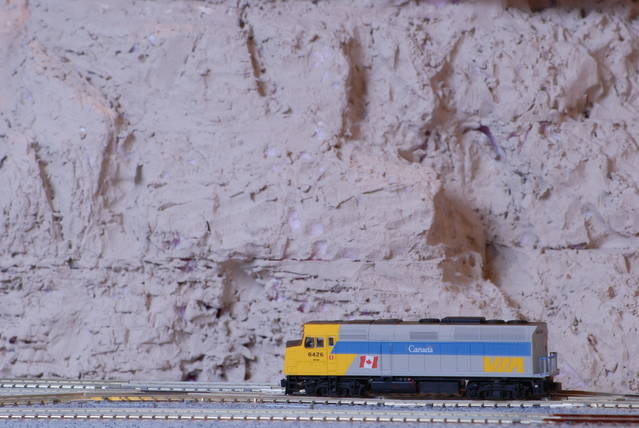

    Here are two pictures a close up and a distance shot of the cliff, on the oposite side of the cliff I will be building a quarry. The cliff sits on a 1/4 inch sheet of pink foam which provides a base for the cliff so it can be removed to access lower tracks which run below the cliff. I have only put down the base layer of paint, and need to do an additional coat of paint.

    Overall I am happy with the results since this was my first attempt at carving foam. Boy did I learn a lot for the next mountain or carved foam area.

    http://www.trainboard.com/railimages/data/1756/DSC_0043.JPG

    http://www.trainboard.com/railimages/data/1756/DSC_00571.JPG

    [​IMG]

  9. Doug A.

    Doug A. TrainBoard Supporter

    3,486
    127
    54
    Well, I got virtually nothing on my list done last week. Probably made about another 10% progress on the bridge, and that's it. And this wasn't supposed to be one of my "missed" weeks either but I lost 2 days of my proposed 3 day weekend due to a work emergency. (doh!) Anyway I'm just gonna defer to last week's list and hope I can get that done this weekend. Next weekend/following week is out.

  10. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    270
    49

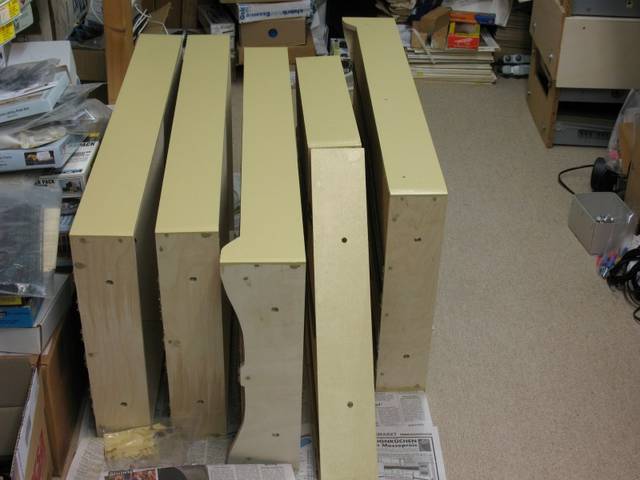

    I've painted the sides from the segments, each one two times with sanding between. :angel:

    [​IMG]

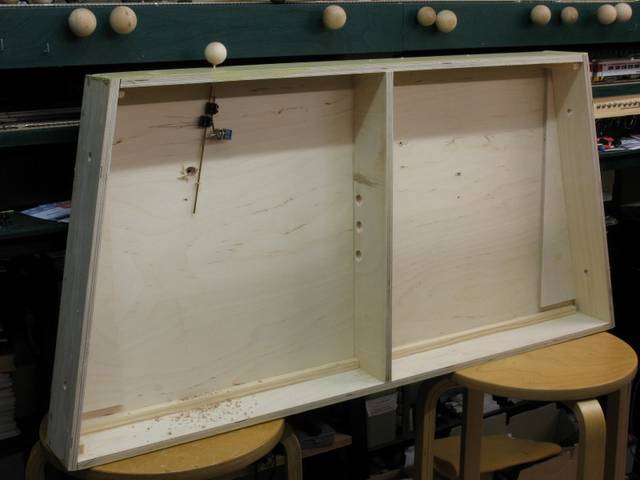

    Now I start with turnout device under the second segment (the first was finished).

    [​IMG]

    Wolfgang

  11. poppy2201

    poppy2201 TrainBoard Member

    716
    183
    24
    Week 1 saw no progress due to recovering from low back injury. If I am to stay on schedule, then week 2 will have to see double duty.

  12. pdx1955

    pdx1955 TrainBoard Member

    169
    5
    22
    Well, Week 1 passed with no real progress because of too much overtime at work - just too tired to do much. I did however, refine some future structure placements and did some more research into the gas plant that I will be modeling. Hopefully, I will be able to make some physical progress next week.

    Peter

  13. ppuinn

    ppuinn Staff Member

    2,242
    744
    47
    Nothing to show (no pics) toward my goals since I posted last Friday, but I've been reading up on my recently arrived stationary decoders. If I get finished with some prep work I need to do for upcoming meetings at my job, I'll try to get something done this weekend on the DS64s.

    Ran some trains for visitors last weekend. Got some bargains on wire and plexiglass at a hardware store that is going out of business. Installed MT trucks with couplers on 2 used boxcars I picked up at a train meet last fall.

  14. Flash Blackman

    Flash Blackman TrainBoard Member

    13,326
    396
    149
    Is this the first week of this party? I would hate to know I was late again. Heh, heh...

    Here is my original building from last years party. Picture taken as it was last Feb 14, 2007.
    [​IMG]

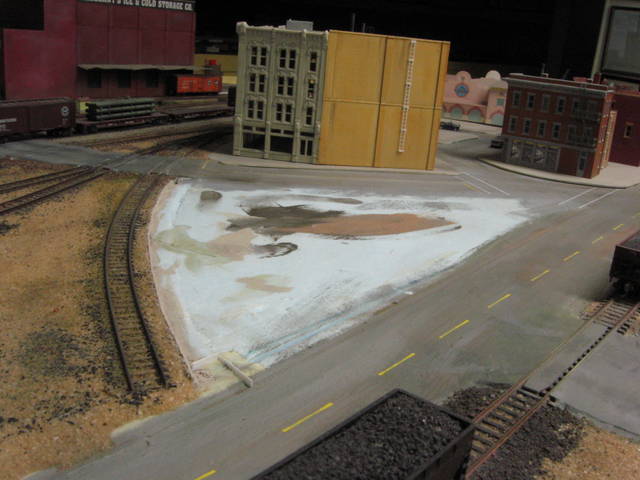

    Building location. The structure sits on a .060 inch piece of styrene that forms the triangular city block.
    [​IMG]

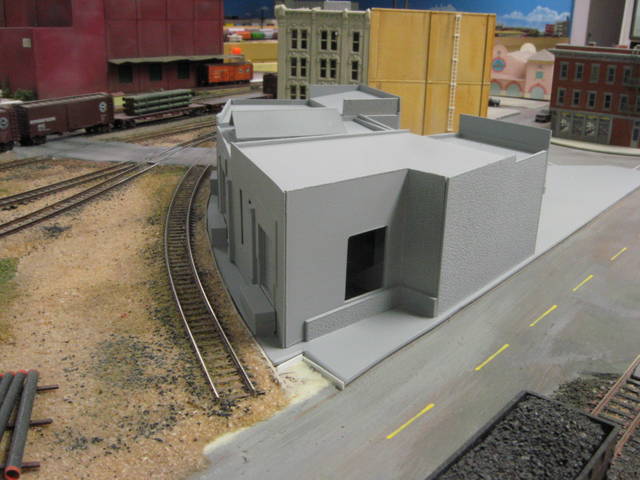

    Building and city block; primed and in place. This corner is to have a wooden loading dock that inconveniently blocks the street.
    [​IMG]

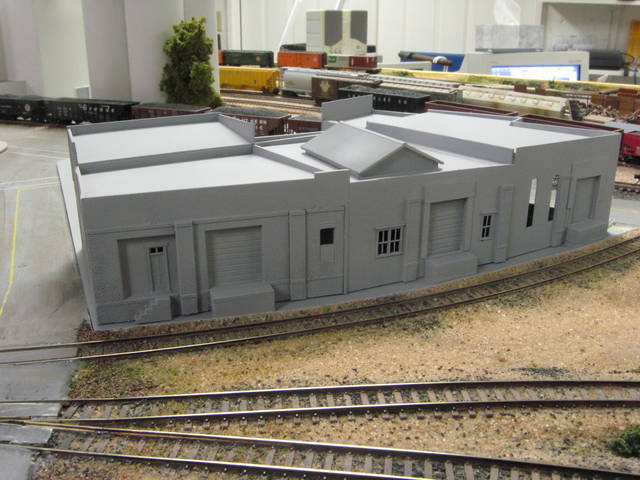

    Trackside view. I can see I need to touch up all the scenery here including the track. Pictures are good for showing errors. Of course, the late John Allen said that if you take a picture of your model and you can still tell it is a model, it needs more work. I wouldn't go that far, you know? After all, this is a party!
    [​IMG]

    Last edited by a moderator: Feb 12, 2008
  15. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    270
    49

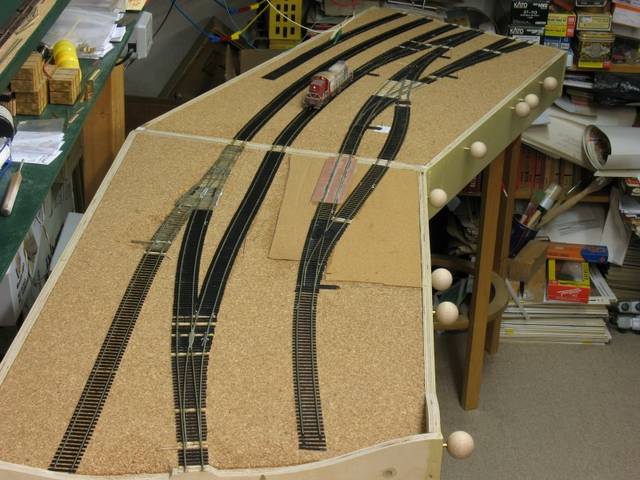

    I've worked with the second segment of Diamond Valley. Now I could test run an engine. All track is powered and the turnouts have manual actuation.

    [​IMG]

    Three segments more are waiting. :angel:

    Wolfgang

  16. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    20,554
    18,216
    253
    I painted all the rocks in the T8-10 area, but after I laid down a black wash, I darkened it too much. I might have to repaint it all a lighter color.:(

  17. Flash Blackman

    Flash Blackman TrainBoard Member

    13,326
    396
    149

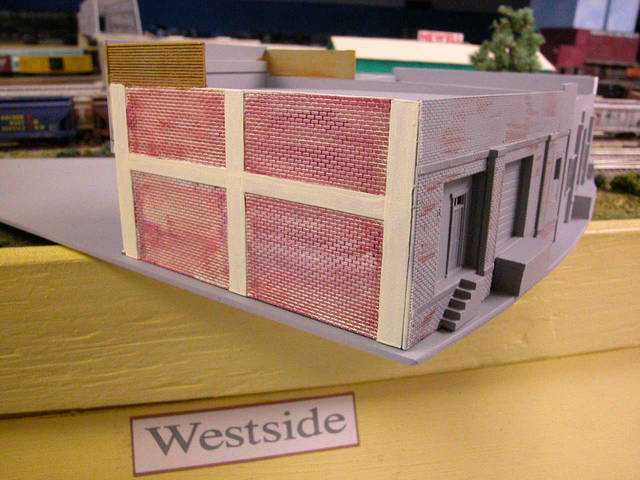

    Attempting to paint the brick and make it look weathered. Maybe I will just cover it with a sign or put some grimy black around. :rolleyes:

    [​IMG]

  18. okane

    okane TrainBoard Supporter

    1,923
    856
    42
    Flash

    Is that city block all kitbashed, or dare I ask a regular KIT?

  19. Flash Blackman

    Flash Blackman TrainBoard Member

    13,326
    396
    149

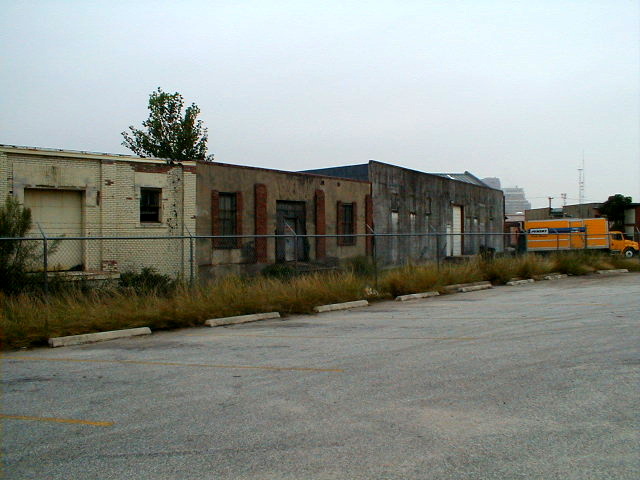

    It's a kitbash; a little of this, a little of that. The prototype covers a large area and is six or so combined buildings. This model approximates the siding part only. The real store front is/was about two blocks long. This is the best photo I have of the curved siding. The track is behind the curved chain link fence. It's hard to tell, but the building in the photo is built in a long curve along the siding.
    [​IMG]

  20. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    20,554
    18,216
    253
    I just had a major roadblock...
    I need to move from my house to another house a couple blocks away within the next 2-3 weeks! :(:(The layout has to get dismantled, and reassembled in the new place. At least there's room in the new place.;)
