    I think that Union Station bought the dies for the American Limited cor kits but I have not heard yet if they have started producing them again. The M&R sides are 156mm long. The Kato smooth side cars are 188.5mm so would have to be shortened. I have done that on a few conversions. The old Con Cor smooth side cars are 154.5mm. The roofs would be the tricky part to lengthen but it could be done by using two roofs. The new Con Cor Budd cars are the right length but have corrugated roofs. If you can find them the old ROWA cars are the exact 156mm long.

    locomcf likes this.
  2. drasko

    drasko TrainBoard Member

    280
    37
    18
    rick, theyre not 1000, 2000, 3000, or 5000 class. the santa fe type like dirks 1624 was a 1600 class locomotive with twins in the 900 class series. the 5011 was part of the 5001 class texas type 2-10-4s, you have to know the numbering classes to properly call them by their series. the 5000 class was the single madame queen. the tenders were not really class specific as the 3800/3900s, 3751-65 class, 5000, 5001, and so on all shared the same short or long large tenders at different points in time.

    Drasko

    Dirk Jan Blikkendaal likes this.
  3. locomcf

    locomcf TrainBoard Member

    94
    27
    16
    Thanks again Russell. That is a tremendous help.

    Yes, Union Station lists the AL core kits but they've been out of stock "forever".

  4. SP-Wolf

    SP-Wolf TrainBoard Supporter

    1,895
    5,239
    60
    Having a little fun -- I call this "The Super Streak" --

    [​IMG]

    Wolf

    gmorider, sams, Josta and 10 others like this.
  5. r_i_straw

    r_i_straw Staff Member

    18,697
    17,997
    233
    I just thought of another car that could be modified and used for a cor kit. The old Atlas/Rivarossi 10-6 smooth side sleeper is 158mm so would have to be shortened a little.

  6. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,809
    122
    35
    Hi, everyone :) great thread.

    Here's a few from my archives:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Happy Holidays 2019.

  7. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,809
    122
    35
    N scale in the foreground, HO in the background:

    [​IMG]

    [​IMG]

    A N scale close-up of the infamous Santa Fe "90" Erie-Builts:

    [​IMG]

    Young and old with good taste in appreciating Santa Fe Warbonnets:

    [​IMG]

    This was taken at the Nor-Cal Free-Mo ( http://norcalfreemo.com/ ) Labor Day 2011 meet. Thx, Nor-Cal Free-Mo for having me.

    Last edited: Dec 29, 2019
  8. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,809
    122
    35
    Finally, since I know this thread is about "Santa Fe Passenger Equipment", here's a little bit more about that N scale Santa Fe Big Dome, upleveled from a Bachmann model:

    [​IMG]

    [​IMG]

    You can see more info about recreating this Santa Fe Big Dome N scale model for yourself, here in this downloadable PDF:
    https://web.archive.org/web/20151002184727 http://home.comcast.net/~atsf_arizona/Modeling_Santa_Fe_Big_Dome_in_N_scale.pdf

    If you want to know more about recreating a N scale Santa Fe U30CG model as per the pictures in my previous post, using a Minitrix shell on a Kato U30C/C30-7 mechanism... a step-by-step picture documentary is here: https://pbase.com/atsf_arizona/santa_fe_u30cg

    Happy Holidays, all.

    Last edited: Dec 29, 2019
  9. Josta

    Josta TrainBoard Supporter

    613
    3,766
    48
    An oldie but goodie....one of my favorites (HO scale) [​IMG]

  10. randgust

    randgust TrainBoard Member

    3,494
    498
    53

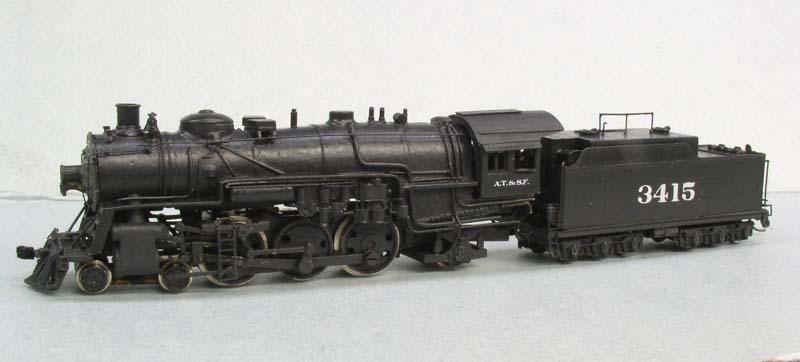

    I can't give an 'upvote' to Kirk here, but I can certainly show off one of the tenders - which made my old 'junker Jamco' 3400-class into a 12x12 pickup monster, smooth runner, and no-apologies-needed for the tender upgrade from the 1968 brass original:

    [​IMG]

    These were outfitted more like a small Northern than a big Pacific - same 80" drivers, main rods, etc. as their big brothers.

  11. r_i_straw

    r_i_straw Staff Member

    18,697
    17,997
    233
    A Con Cor NYC J3a Hudson given the Santa Fe treatment.

    gmorider, SP-Wolf and BNSF FAN like this.
  12. DCESharkman

    DCESharkman TrainBoard Member

    3,705
    616
    55
    I have one of those, you want to give mine the ATSF treatment?

  13. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,732
    377
    47
    Not the great or the latest, but I like Santa Fe passenger and here is some, from present and last layout, which both were supposed to be parts of Galveston. Switcher assembling "Texas Chief" at Galveston station (mocup of planned DPM Hilltown Hotel kitbash in distant background).

    Motive power arrives. I have F7ABBA and PA-B but only one PA with MTL couplers when I was making this test run.

    Leaving the island, passing Island Tower (behind the first coach. Tower is a not-yet-modified AHM "Marysville" tower bought already built off eBay or some such. About right.

    On the "two mile long" causeway (actually 6 feet long, made up of the upper portions of 7 Atlas viaduct sets, and an old Scherzer rolling lift bridge.) This is on old layout. Sadly I could not fit causeway on new layout and gave this section away.


    For decades and decades, since middle 1970s, I tried to find something represent a Santa Fe corrugated streamlined diner. Finally Kato made one for their Super Chief set, and I managed to get a "single".

    Josta, freddy_fo, BNSF FAN and 4 others like this.
  14. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,732
    377
    47
    I am fascinated by Santa Fe "California Special" even though it didn't run to Galveston, which my layout represents. I started accumulating possible equipment. Haven't built much of it, except in "Photoshop". I espcially like the mixture of streamlined and heavyweight equipment.
    My Photoshopped how-to for a partition heavyweight coach from brass-etched car sides and an old (Model Power?) paired-window coach.

    A Valley series sleeper from brass-etched car sides and an old Concor slumbercoach as a core. ValleyHow.jpg

    Josta, atsf_arizona, BNSF FAN and 4 others like this.
  15. gmorider

    gmorider TrainBoard Member

    717
    825
    25
    My dad worked for Santa Fe in the signal department. This was before I was born. I like all the above. :)

  16. drasko

    drasko TrainBoard Member

    280
    37
    18
    20180621_212414.jpg 20170107_220118.jpg Rick,
    They weren't 1000, 2000, or 3000 clas .
    The Santa fe broke them down more than that.
    You had multiple classes numbered in the 3000 numbers like the 3700 class 4-8-2, 3751/3765 4-8-4s, the 3800 class 2-10-2 .
    Heres some of my scratchbuilt and kitbashed stuff.

    Drasko

    BNSF FAN, Carl Sowell, MK and 2 others like this.
  17. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,809
    122
    35
    Hi, all,

    It's been brought to my attention that the previous post of the following, has an accidental error in the URL to the PDF describing this build.

    Here's the corrected URL which will work to download the PDF:

    https://web.archive.org/web/2015100...ona/Modeling_Santa_Fe_Big_Dome_in_N_scale.pdf

    ======================
    This is what was posted previously:
    ======================

    "Finally, since I know this thread is about "Santa Fe Passenger Equipment", here's a little bit more about that N scale Santa Fe Big Dome, upleveled from a Bachmann model:

    [​IMG]

    [​IMG]

    You can see more info about recreating this Santa Fe Big Dome N scale model for yourself, here in this downloadable PDF:

    https://web.archive.org/web/2015100...ona/Modeling_Santa_Fe_Big_Dome_in_N_scale.pdf

    (JS: the above link is correct now).

    If you want to know more about recreating a N scale Santa Fe U30CG model as per the pictures in my previous post, using a Minitrix shell on a Kato U30C/C30-7 mechanism... a step-by-step picture documentary is here: https://pbase.com/atsf_arizona/santa_fe_u30cg

    Happy Holidays, all.

    ===================
    end of corrected previous post
    ===================

    locomcf, SP-Wolf, MK and 2 others like this.
