N scale "What's on your workbench?"

Mark Watson Oct 28, 2009

  1. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    245
    149

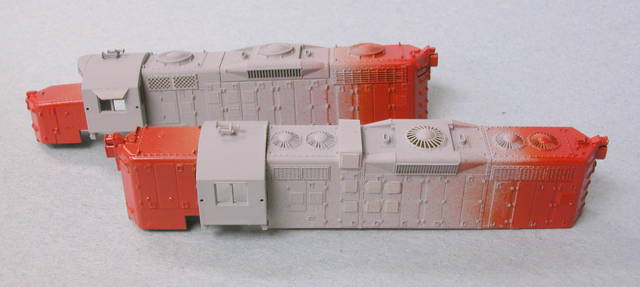

    I'm trying to paint the Espee bloody nose paint scheme. This is the beginning with primer and the red color. Masking next.
    [​IMG]

  2. JASON

    JASON TrainBoard Supporter

    1,870
    5
    35
    Steve,very nice detail work!Very very nice.


  3. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    245
    149
    Jason is posting just in time to see my masking work. I owe it all to Jason as he introduced me to Tamiya masking tape and I have been a better person ever since. That was a very good tip, Jason. Thanks! :thumbs_up:

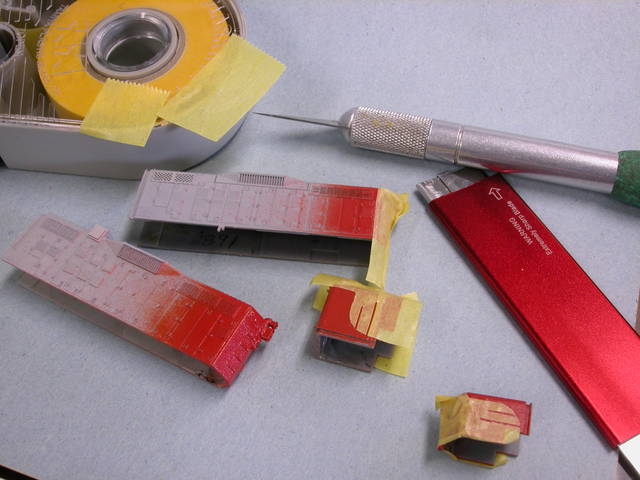

    Here I am masking the noses before the dark gray.
    [​IMG]

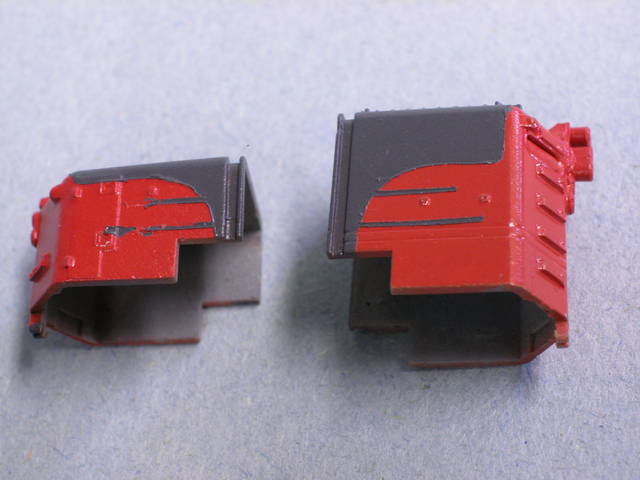

    Here is the result. I did spray a clear and then the dark gray. The clear helps prevent runs under the mask.

    Worst result on the left; best result on the right. Maybe some touch up will get it through. That or more weathering.
    [​IMG]

  4. SleeperN06

    SleeperN06 TrainBoard Member

    3,386
    49
    45
    Wow that is impressive.:thumbs_up:

  5. mtntrainman

    mtntrainman TrainBoard Supporter

    7,967
    3,011
    120
    Got my "Controls" drawer done.

    [​IMG]

    OK...dont laugh at the cheapo DCC system. Hey...it works for now till I can afford to 'upgrade"'. :tb-tongue:


    I found a metal framed/plastic drawer computer keyboard drawer at a second hand store...for $1.00. I drilled some holes for the 'feet' of the Tech II to drop in (stops the controller from sliding around). Pop riveted the 'generator' for the DCC system in so it wouldn't slide around. It also holds the DCC controller hard against the side...so it don't slide. Drilled a hole in the center of the drawer for the 4PDT switch...which flips to choose either DC...or DCC. Pop riveted the switch plate in. The piece of yard stick with the flex track...at the front of the drawer...is my programming track. It has allligator clips on the wires to clip on the programming leads off the controller. I can take the programming stick out and take it in the house...to the workbench if I need to :tb-wink:

    ALL in all...I think it came out great. Besides...T.H.E. Wife likes it...LOL.

    *NO IT WILL NOT BE PAINTED PINK !!*...ROFLMAO :tb-biggrin:

    .

  6. noblerot

    noblerot TrainBoard Member

    46
    0
    9
    I've been working on a couple of old NSN Maxi III kits

    [​IMG]

    [​IMG]

    [​IMG]

  7. noblerot

    noblerot TrainBoard Member

    46
    0
    9
    Flash, That is a tough mask job, I look forward to you finishing this. Will you try to cut down on the thick edges or do you think a clear coat will fill in around it? I recently tried to cover an improperly placed decal by painting over it and had the problem of those thick edges, even though the color was the same, it stood out more than I could live with. I tried to sand it down with not so great results. In my case the area was not as noticeable when the loco was put back together. I wonder if the colors being different might actually help it blend in better with clear or dull coat?

    Last edited by a moderator: May 2, 2011
  8. Steve Mann

    Steve Mann TrainBoard Member

    526
    2
    19
    What'd you use to weather the metal wheels nobelrot?

  9. noblerot

    noblerot TrainBoard Member

    46
    0
    9
    I just painted them with Polly Scale rust, I didn't get to the trucks yet but I usually paint them grimy black then some rust and black powders

  10. RWCJr

    RWCJr TrainBoard Member

    281
    5
    16
    Minor "adjustment" in prototype (SF Mallet RH vs 92'Concrete Style) required a little trimming of the floor.
    [​IMG]
    Below is a comparison of the side walls.
    [​IMG]

  11. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    245
    149
    I think the thick edges may have been exacerbated by the clear coat. It made the paint thicker. My paint is some old Badger Accuflex and it is very thin. I probably sprayed too much to get coverage and caused the problem, too.

    A clear coat might help to alleviate the thick edges. I have to do spray a clear at the completion with an overall flat coat to seal the decals and paint. I normally spray with a gloss coat before decals, but this Badger Accuflex is so glossy that I will not do that this time.

    If this was H0 scale I wonder if it would still be so noticeable?

    As I think about this, spray technique (or bad spray technique) caused a lot of this. I should hold the nozzle slightly further from the model and not spray so much paint at one time. I have eight more of these to go so I will get better. Nothing like practice. :thumbs_up:

  12. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    245
    149
    Lost Parts; Clean Workbench

    I moved on to my next two GP18 conversions. I was disassembling for details when I lost control of the cab an it flew off onto the workbench. But where? I heard it hit the top of the stack but then it bounced under all this mess. How will I ever find it except to clean my workbench? Sometimes misery just compounds itself. Why me?

    So it begins. This could take a few days. Might as well pack up and sort everything into piles. I do have everything labelled; I just can't remember what the labels mean. Somehow I have got to get back into this.

    Time for a popcorn break.

  13. 2slim

    2slim TrainBoard Member

    590
    0
    24
    George,
    I think your control drawer is awesome! Gotta start looking for one of these for myself.

    2slim

  14. riog66

    riog66 TrainBoard Member

    139
    22
    12
    Since the layout room has been so cold this past week or so, I've tried to keep busy by bringing into the kitchen my Kato Cal Zephyr coaches and adding some passengers + window shades
    The passengers are simply a pack of 500 cheap / brightly painted N scale figures from Hong Kong I bought on eBay. Cost only about $13 which is lucky cos I chop them off at waist height for the coach seating height + about chest height for the passengers lucky enough to get a dome seat!!

    Strips of paper airbrushed a light medium green / cut into strips & then individual shades to vary the heights

    I get thru about 3 coaches a night cos it's real tedious job :prolleyes: but one I think will be worth it


    Attached Files:

    • tn.jpg
      File size:
      4.4 KB
      Views:
      124
  15. SleeperN06

    SleeperN06 TrainBoard Member

    3,386
    49
    45
    Your photos are so small, I can’t see anything. :tb-sad:

  16. riog66

    riog66 TrainBoard Member

    139
    22
    12
    Hey you're right, I can't even open the thumbnail :pbaffled:

    I'll take some more pics tomorrow & post them

  17. Thieu

    Thieu TrainBoard Member

    1,530
    338
    36
  18. DaveD

    DaveD TrainBoard Member

    454
    12
    22
    Looks great. I've not seen that antenna radome type before. Which roads use that?

  19. daniel_leavitt2000

    daniel_leavitt2000 TrainBoard Member

    1,356
    20
    29
    I been working on some vehicles:
    [​IMG]
    1967 Ford/American LaFrance engine. I used a shortened Athearn Ford C box truck chassis and the pump body from the Bachmann ALF 900.

    [​IMG]
    As you can see, this engine is pretty small compaired to a mid-70's era Athearn Short Wheelbase engine. The gumball beacon was made using several coats of Kristal Klear over a strand of fiberoptic and painted with Tamiya transparent red.

    [​IMG]
    Ford L8000 engine.

    [​IMG]
    Just a few different parts can add a lot of variety.

  20. daniel_leavitt2000

    daniel_leavitt2000 TrainBoard Member

    1,356
    20
    29
    I also started work on a Consolidated Freightways Road Commander:
    [​IMG]

    [​IMG]
    The cab is cut down from a Con-Cor Freightliner sleeper. I scratchbuilt the frame and added Atlas wheels. I still need to paint the chassis red and add an Atlas exhaust pipe.

    Finally, anyone remember the old Lineside models Concrete truck? Here is a pic from their website:
    http://www.linesidemodels.com/images/cement.jpg

    As you can see it is a horrible model compaired to Athearn's Macks or the GHQ Ford Mixer. I purchased the model for the Mack DM800 cab, which is not avilable elsewhere. The cab is actually pretty nice and makes a great dumptruck with the dump bed from Fine N Scale. This left me with the Cement body. I pretty much threw out everything but the cement bunker and supports. The frame is scratch built, the tanks are from an old Con-Cor truck, and the railing are some etched parts I found in my parts box.

    [​IMG]

    [​IMG]
    The rear collector and chute are scaratch built. I plan on adding a Con-Cor Kenworth cab to complete the model.
