    Thought I'd post a How-To to change those drab single MTL Gunderson Husky's into the 3 or 4 drawbar units.

    Before I start with technical this, that and the other, I want to post the Who's that have/had the 3 or 4 unit drawbars. Please understand that two types of Gunderson Drawbar units were made. Regular 48' Husky Stacks and the 48' All-Purpose "AP" Husky Stacks. Since no manufacturer makes the "AP" Husky Stacks, I will keep the info to just the plain 48' Husky Stacks.
    --------------------------------------------------------------------------------
    Burlington Northern "BN" used 3 well cars joined by drawbars to make up their units. They also had two different paint schemes.
    BN 64019 - 64049 were brown with white lettering and white BN logo.
    BN 64228 - 64327 were reddish with the white lettering and red/white/blue BN logo.

    When BN merged with Santa Fe the drawbar units were not immediately painted but they did recieve new patch roadnumbers.
    BN 64019 - 64049 became BNSF 230000 - 230030
    BN 64228 - 64327 became BNSF 230031 - 230129

    CRLE had only three units of 4 well cars. I cannot find any photos of these units.
    CRLE 5900 - 5902

    GBRX had only three units of 4 well cars too. No photos available for these either.
    GBRX 92004 - 92006

    Later these GBRX re-aquired and roadnumbers changed to
    ECXX 92004 - 92006

    TTX has sixty units of 4 well cars. You can find photos of these at Railroad Picture Archives.NET
    DTTX 270000 - 270059

    These are the only companies that have used the regular 48' Husky Stacks with Drawbars. BN/BNSF drawbar units have 3 well cars per unit while all the rest had 4 well cars per unit.
    -----------------------------------------------------------------------------

    Now, here are the photos, with captions, of the MTL Huskys I modified into a BN three drawbar unit.

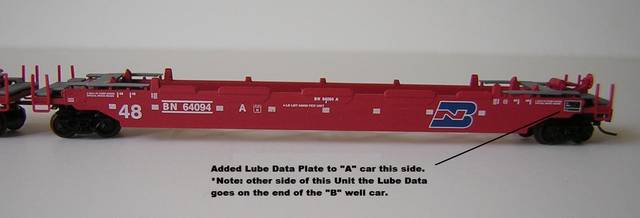

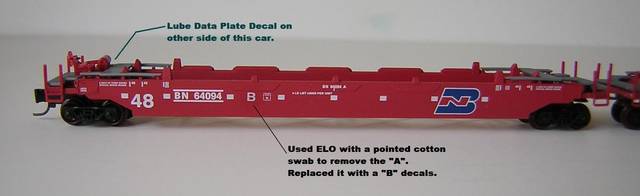

    [​IMG]

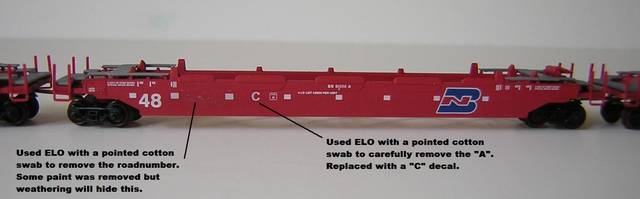

    Finished look!

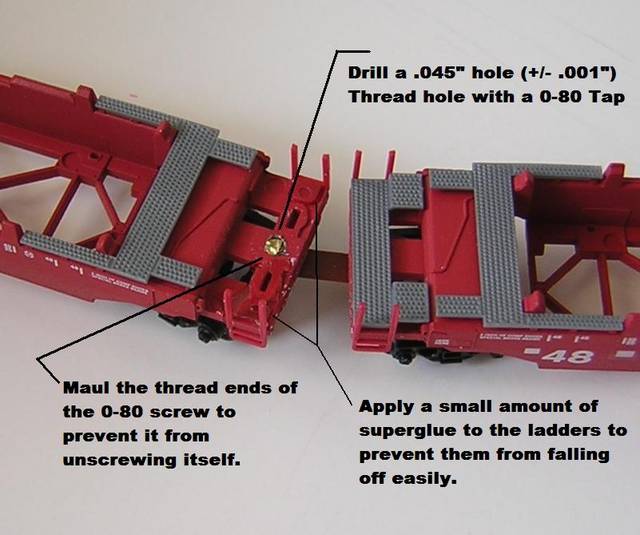

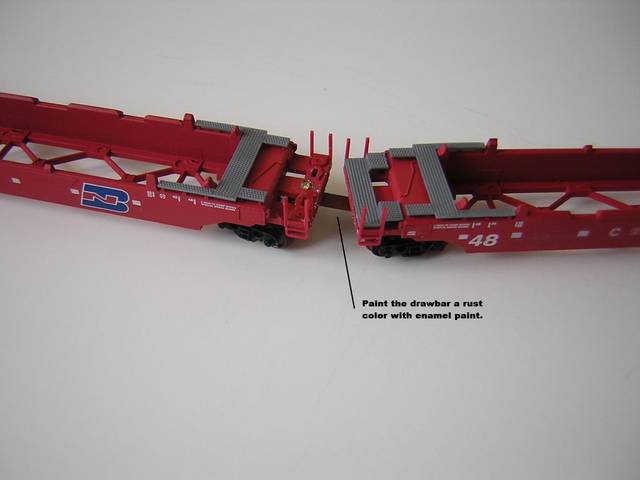

    [​IMG]

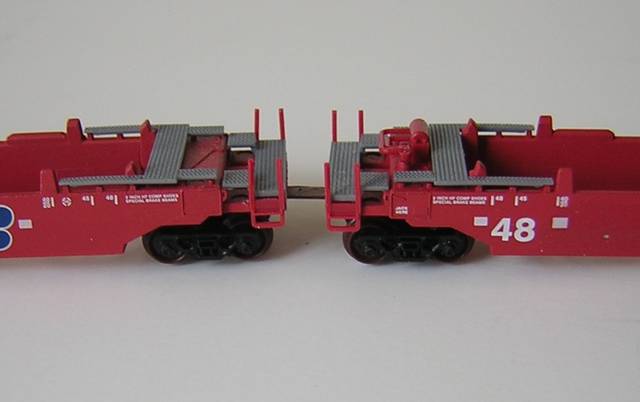

    This is what the drawbar area will look like when finished.

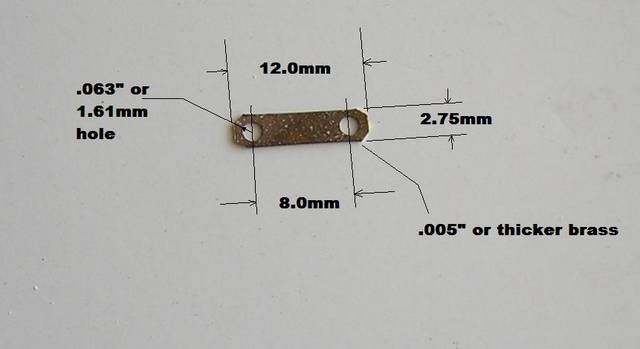

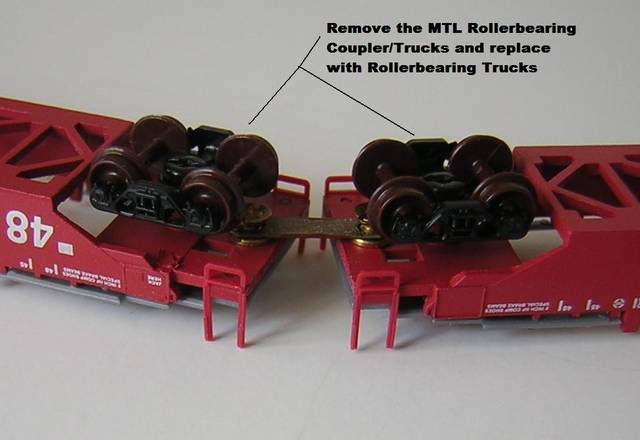

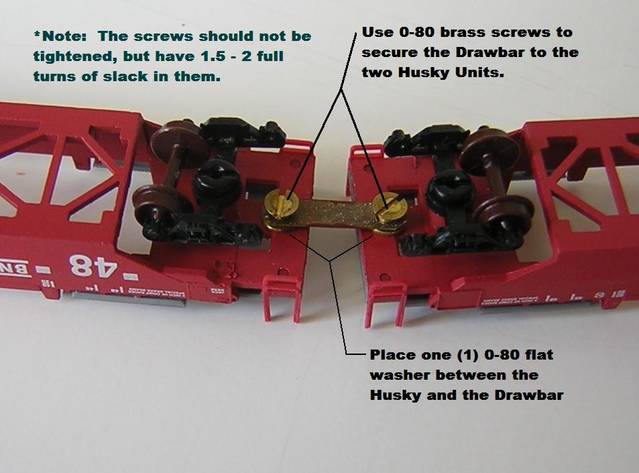

    [​IMG]

    [​IMG]

    Hobo Tim

    Last edited by a moderator: Jun 25, 2010
