What to use for a free standing backdrop

TodW Aug 1, 2009

  1. TodW

    TodW TrainBoard Member

    14
    0
    10
    I am adding a peninsula on to my layout. It will include a free standing backdrop (compared to the rest of the layout that has the backdrop up against the wall) that will be 18" high.
    I am inquiring on what type of material to use. Will 1/4 inch masonite be strong enough without warping? Or will it need to be framed? Or should I use 1/2 inch plywood, which I suspect won't need any framing.
    Any suggestions will be helpful.

    Thanks,
    Todd

  2. Lark

    Lark TrainBoard Member

    150
    0
    15
    Gee-

    As I read the title of the thread and before I read your post the thought of 1" thick foam board popped into my head. It's what I was thinking of using. A bead of liquid nails. I'm thinking it could be detailed on the bench and then plunked into place on the layout. In my case I was going to cut a hole thru to have a "loads in-loads out" facility. For the sense of using things like masonite and other, heavier materials that might warp- I'd just get a sheet of the foam core display board they sell at craft and office stores.

    Mark

    Last edited by a moderator: Aug 1, 2009
  3. Powersteamguy1790

    Powersteamguy1790 Permanently dispatched

    10,785
    11
    115

    The 1/4" Masonite will have to be framed. Plywood will also have to be framed.

    Try some blue or pink foam one inch thick.

  4. Rossford Yard

    Rossford Yard TrainBoard Member

    1,210
    147
    34
    I actually used free standing masonite on the old version of my layout. I put them back to back, since I had only one side smooth and cut it in half to 24" high. I anchored the base by wedging it up to 3" foam that I was using as scenery base, and glued and/or screwed/clamped it at the top. I didn't spackle the seams and they always showed, but I suspect you could.

    It held up for several years until I moved the layout.

  5. LOU D

    LOU D TrainBoard Member

    1,412
    2
    23
    I'm using 1/4" Masonite,not framed,but only 15 or so inches high.The middle of where it is on my peninsula is 4" of foam,2-2" pieces,one on top of the other.To mount it,I fired up my circular saw,set it at 2",and cut a perfectly straight 2" deep slot where the Masonite goes.It has a slight bend in one spot,so I ran the saw up to the bend,the restarted it in the other slot.I have a mitre saw with the backbone removed,great for making nice straight cuts in foam,I finished off the uncut parts of the slots with that..[because of the round blade not meeting completely across the slot.] There are also mountains and buildings going up that will help support it,but even without that stuff,it's still pretty strong..

  6. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,117
    152

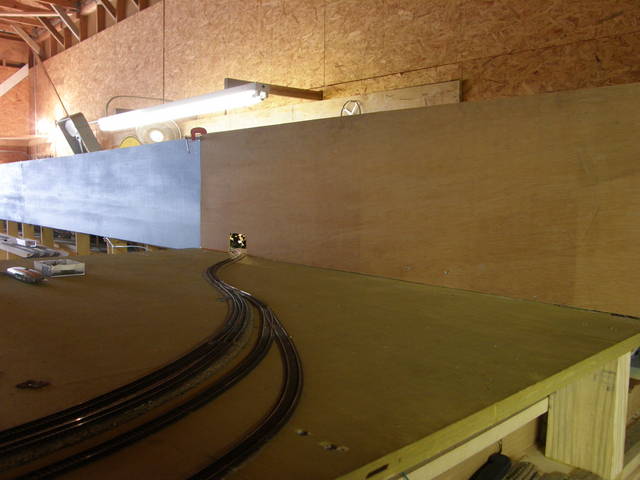

    I am using 1/4" board about 18" tall nailed along the bottom to the benchwork. In some places it is just glued in place. So far no problems in a garage with a huge temp variation.
    [​IMG]
