What are these cars?

OC Engineer JD Jan 31, 2012

  1. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,671
    156
    135
  2. Chris333

    Chris333 TrainBoard Supporter

    2,480
    93
    38
    They hauled Helium tanks.

    Edit: I may be wrong since I can't find info on it, but I know there were a few N scale models of the car you've shown and they hold some type of cylinder tanks. Maybe chlorine?

  3. TwinDad

    TwinDad TrainBoard Member

    1,844
    546
    31
    There was a thread about this type of car... somewhere... not too long ago.

    It's a "ton container car" ... carries these small canisters of chemicals too hazardous to carry in bulk.

    I believe the containers are lowered through the openings in the top.

  4. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,671
    156
    135
    Thanks Guys! :)

  5. r_i_straw

    r_i_straw Staff Member

    18,206
    14,327
    232
    I used to have one lettered for Dow Chemical. However a guy in the club wanted it and pestered me continuously until I relented and sold it to him. If I remember correctly, the top cross beams were detachable on the prototype and the tanks could be lowered in from above.

  6. mu26aeh

    mu26aeh TrainBoard Member

    270
    165
    14
  7. igoldberg

    igoldberg TrainBoard Member

    40
    0
    10
    What is this car?

    Those cars were used to carry materials that were dangerous when wet or could not come in contact with certain materials. One of which is Acrylonitrile. It is the basic chemical used to make ABS and Butylene plastics. It is very toxic and when it comes in contact with certain metals, any acid or alkyline it will react and start to burn, resulting in more chemical reaction to a point where it can explode. It emits nasty fumes including hydrogen cyanide gas. This is why it is one of the chemicals put into those containers to limit how much is together. There are other chemicals tht do the same sorts of things such as calcium carbide. If it gets wet it becomses acetyleme gas which can catch fire and explode.

  8. Chris333

    Chris333 TrainBoard Supporter

    2,480
    93
    38
  9. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,726
    334
    47
    I found a photo of this prototype in the book American Car & Foundry: a 100 year history by Edward S. Kaminsky (Wilton, Calif.: Signature Press, 1999). I asked my local public library to borrow a copy for me via their Interlibrary Loan service, and they loaned me a copy that belonged to the library of the U.S. Department of Transportation. I see that Amazon.com has a copy available for $408 ($80 used). I think I photocopied the picture but I cannot immediately find it.

    Page 337 has a photo of DuPont DUPX #50001, an ACF RD-52 container car, a type blt late 50s early 60s.
    As I understand it, the triangular shaped frame on the middle of the side of the car is kind of an A-frame support which cabn be used to hoist a container into the car. I believe this car was called a carbide container car, but I guess it could be used for other containerized shipments requiring critical handling.

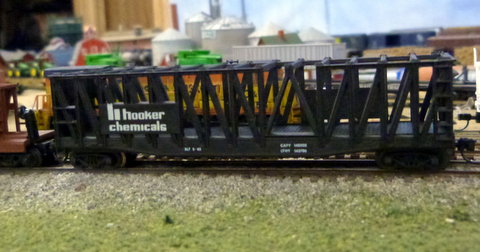

    My handy-dandy rolling-stock inventory shows I have one of these cars lettered "Hooker, but I don't think I have the containers. I believe the superstructure and sides and ends come off the car fairly easily in one piece. It would probably be necessary to pop the superstructure on and off if I wanted to operate this car loaded to a destination one way and also operate the return empty movement.

  10. oldrk

    oldrk TrainBoard Supporter

    3,700
    53
    51
    Guess what I got at the train show this last weekend?? I added mt1015 boody mount couplers.

    [​IMG]

  11. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,671
    156
    135
    Thanks for all the great replies as usual guys! :)

  12. Westfalen

    Westfalen TrainBoard Member

    4,094
    21
    55
    Wasn't there a lot of odd stuff produced in the early years of N scale that manufacturers wouldn't touch with a ten foot pole today because they reckon it wouldn't sell well enough.

  13. r_i_straw

    r_i_straw Staff Member

    18,206
    14,327
    232
    Back then, there was not much of anything available. If you produced anything whether common or weird, it was going to sell. Now days, with so much more available, most folks pass on the weird stuff.

  14. Jolly

    Jolly TrainBoard Member

    411
    71
    11
    "Weird stuff" is just the kind if stuff I like to collect for my railraod, so far I have found this car in 3 names. Dow, Hooker & DuPont.

    aurora-14.jpg aurora-12b.jpg aurora-13a.jpg

  15. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,671
    156
    135
    Now thats very cool! :)

  16. randgust

    randgust TrainBoard Member

    3,494
    494
    53
    I used to feel the same way about the N helium tank cars until I found a shot of one in a train during my era. Another oddball in N but actually appropriate in some corridors. Nice list of where they went to in the link below:

    http://www.atsfrr.net/Reviews/HO/Freight/Helium/Index.htm

    http://www.visi.com/~spookshow/freight/atlasrocohelium.html

    Truly excellent modeling data in here:
    http://www.atsfrr.net/Reviews/HO/Freight/Helium/HeliumHandout.pdf

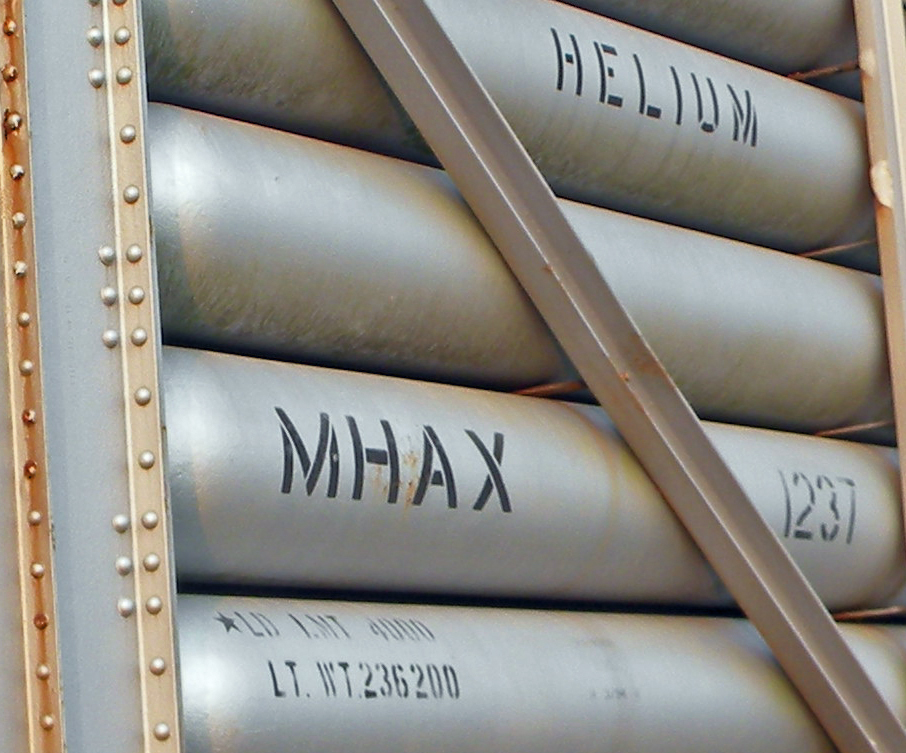

    What still blows my mind is take a close look at the stenciling - LT WT of the car is 239,000 lb for a 40' car, THAT IS 120 TONS EMPTY. Your current maximum axle limit today on a 2-truck 4 axle car is 286,000 and was 263,000 until about 10 years ago. I've had several wonderful debates with people on whether or not it weighed more empty or loaded, and if that was why the car had to be so heavy when empty so that when it was loaded it wouldn't float off. I got answers, but its more fun to keep tossing it out there for people to scratch their heads.

  17. BoxcabE50

    BoxcabE50 Staff Member TrainBoard Supporter

    60,262
    4,858
    650
    Argh. So he teases us. Now I am left to scratch my head, which is slowly reducing the available crop of hair atop....

  18. r_i_straw

    r_i_straw Staff Member

    18,206
    14,327
    232
    Yeah, I love those old helium cars and the legends about folks ignorance pertaining to basic physics. Helium must be magic stuff to do all they think it does.
    ATMX1016 and friends.jpg Cars at Amarillo Plant.jpg Interior view showing tank ends and manifold.jpg Keyes Maintenance Shop and Switcher.jpg

  19. randgust

    randgust TrainBoard Member

    3,494
    494
    53
    OK, well, this is just too funny. The only thing more fun than discussions like this is if everybody does it after drinking two beers, and you're the sober one.
    http://answers.google.com/answers/threadview/id/587790.html

    I've seen some pretty good closeups of the stencilling out there, which sort of answers the question....
    But I found something even better. Jaw dropper. Look at this. I can't believe it. And look at the DATE OF THE PHOTO.
    http://www.rrpicturearchives.net/showPicture.aspx?id=2963682

    C'mon guys, somebody build a model!

  20. r_i_straw

    r_i_straw Staff Member

    18,206
    14,327
    232
    The car would hold only 4000 lbs of helium.
    [​IMG]
