The Bridge and Tunnel thread

Primavw Apr 23, 2014

  1. mtntrainman

    mtntrainman TrainBoard Supporter

    8,516
    4,764
    131

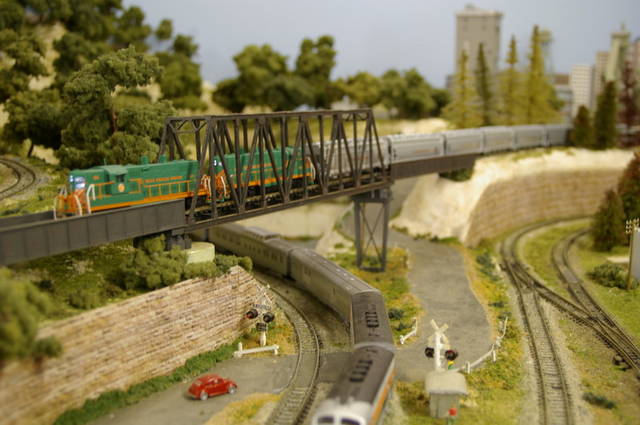

    Here are the same tunnels on my first N scale layout...a 32x78 HCD ... 06/19/08

    This HCD was later incorporated into the original THERR (see above) :)

    [​IMG]

  2. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,702
    978
    117
    From my old layout

    [​IMG]

    [​IMG]

  3. Bourkinafasso

    Bourkinafasso TrainBoard Member

    370
    154
    22
    Does highway bridge count?

    [​IMG]

    Seb
    N scale US trains

  4. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,542
    24,916
    243

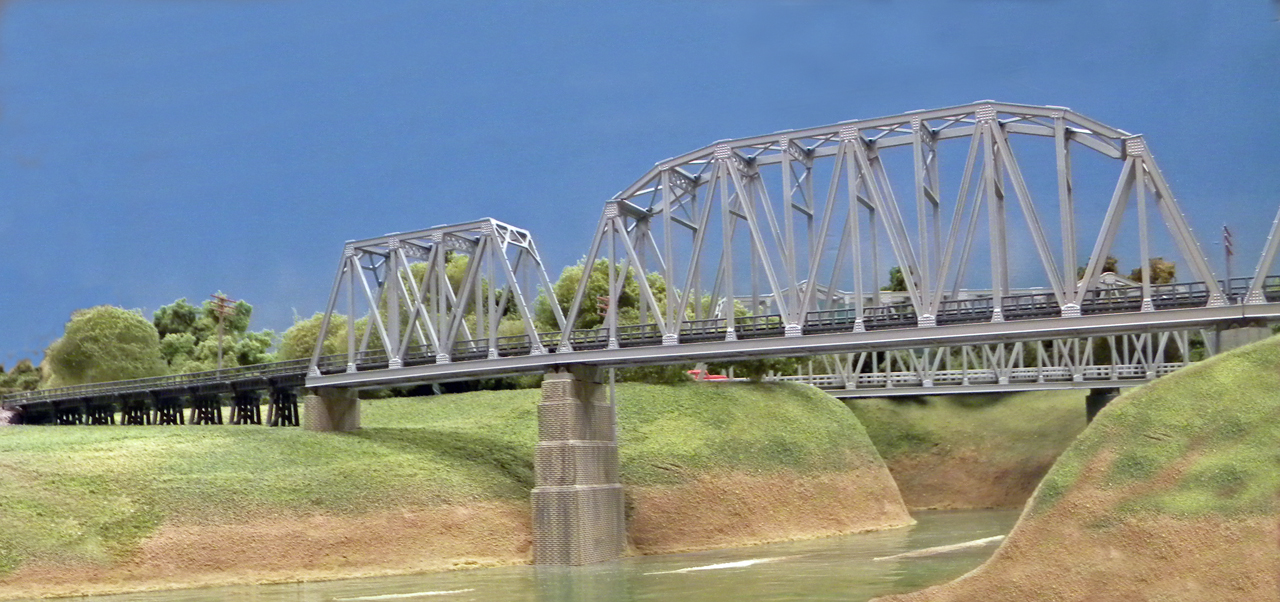

    I believe they do.
    [​IMG]

  5. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,028
    9,433
    652

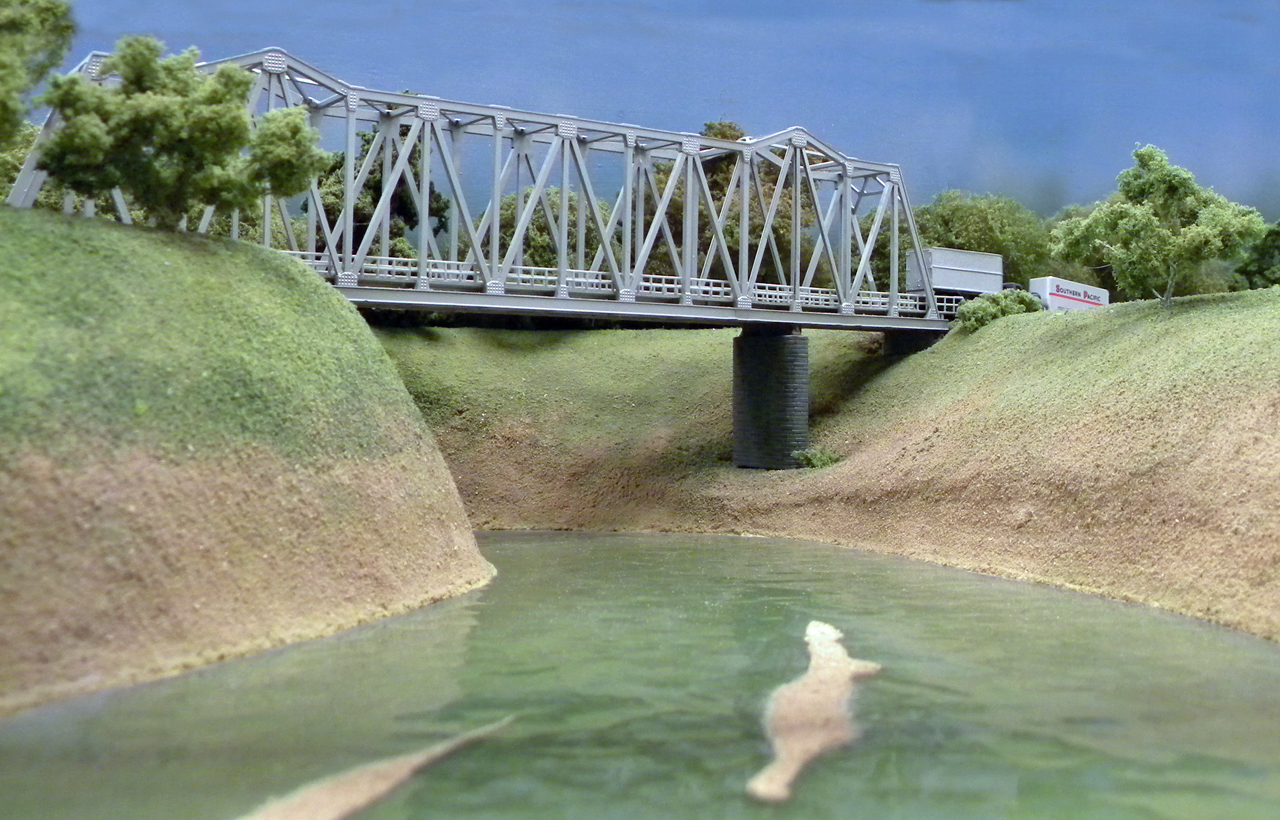

    Is that a small sand bar, in stream middle? Or a great white shark? :)

  6. mtntrainman

    mtntrainman TrainBoard Supporter

    8,516
    4,764
    131
    Loch Ness Monster ?

  7. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,542
    24,916
    243
    Well, there is not much sand in the Brazos, so it would have to be mud.

  8. nscalestation

    nscalestation TrainBoard Supporter

    1,004
    4,033
    50
  9. BCR 570

    BCR 570 TrainBoard Member

    196
    2
    14
    There are three bridges slated for installation on my N Scale version of the Dawson Creek Subdivision. Pine #4 is a high deck truss bridge measuring 1,013 feet in length and 163 feet in height:

    [​IMG]


    This will be a signature scene on my layout, featuring a full size scale model of the prototype:

    [​IMG]


    Just before the railway crosses the Pine River, it spans Highway 97 on a concrete overpass:

    [​IMG]


    My N Scale version is full size, but I had to reverse and sharpen the curve to fit my layout:

    [​IMG]


    Tim

  10. BCR 570

    BCR 570 TrainBoard Member

    196
    2
    14
    Here is the overpass in place on the layout for a test fit with a mock-up of the highway underneath:

    [​IMG]


    The other major bridge on the Dawson Creek Subdivision is the wood Howe deck truss span with trestle approaches spanning the Kiskatinaw River:

    [​IMG]


    My full scale model will be sctachbuilt from scale lumber; until then a temporary span is in place on the layout:

    [​IMG]


    That is it for my bridges; no tunnels.


    Tim

  11. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,742
    458
    49

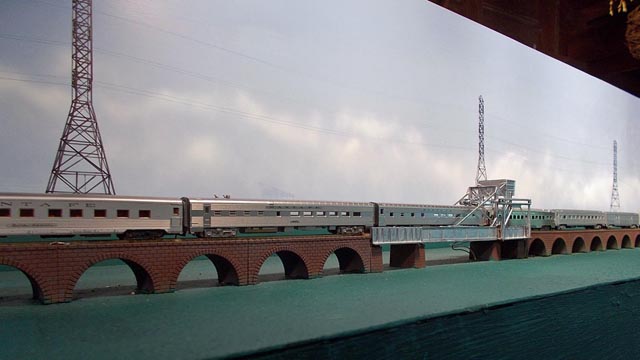

    “Two mile long” Suter Bay Causeway on my a-building Island Seaport layout.
    [​IMG]

    Mostly just top sections of Atlas viduct kits. But LOTS of kits.
    [​IMG]

    Plus the old AHM/Pola Scherzer rolling lift bridge for the center lift span.
    [​IMG]

    My version of the Galveston, Texas causeway.
    [​IMG]

  12. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,742
    458
    49
    My crude 1970 attempt at building a John-Allen-esque spectacular HO layout.
    Balsa sticks held together with sewing pins
    [​IMG]
    concrete pier cast in plaster
    [​IMG]

    Standard Atlas N bridge elements on a 1976 layout thrown together in ten days.
    [​IMG]

  13. Arctic Train

    Arctic Train TrainBoard Member

    856
    43
    18
    Hi Tim,

    Nice bridges you got going there. Question about the concrete bridge. Did you scratch build that one? If so, what material did you use? I need something similar but haven't been too happy with my experiments so far.


    Brian



  14. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,028
    9,433
    652
    Scary looking bridge!

  15. pdx1955

    pdx1955 TrainBoard Member

    169
    5
    21
    The only bridge I have so far is this highway bridge representing Washington Route 10's crossing of the Teanaway River just east of Cle Elum on a NP layout I am building. The NP paralleled the highway and used a non-descript through plate girder bridge, so the highway bridge is just a bit more interesting to look at. The bridge is scratchbuilt from wood and paper and uses Rix railings and roadway sections.

    Peter


    Attached Files:

  16. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    19,847
    14,040
    243
    Tunnel 25:

    [​IMG]

  17. John Moore

    John Moore TrainBoard Supporter

    11,208
    5,988
    160
    A log time ago in many layouts and moves now far removed from memory I had a nice Campbell wood trestle. Long since succumbed to the ravages of storage and moves. So all I have to offer is the various kits and portals that will someday hopefully see life on the new layout.
    [​IMG]

  18. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,542
    24,916
    243
    Southern Pacific bridge over the Brazos River in Richmond, Texas.
    [​IMG]

  19. SYROUS

    SYROUS TrainBoard Member

    345
    20
    12
    Not yet finished or sceniced but here are a fee bridges on my under construction layout.

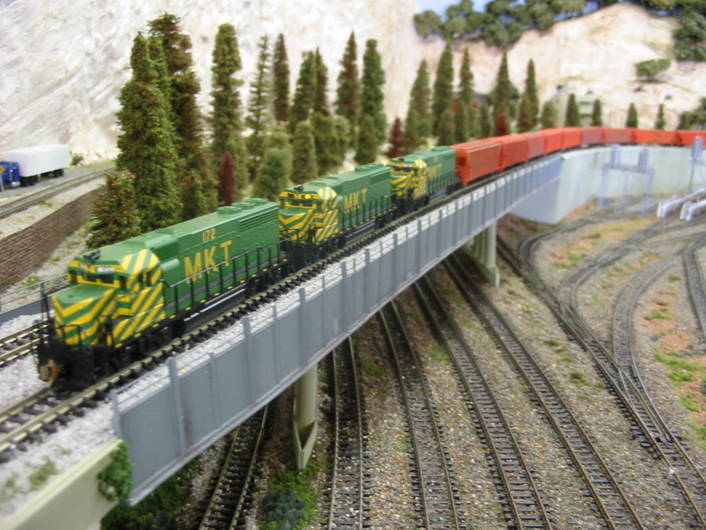

    [​IMG]My arched concert built from scratch highway overpass.
    [​IMG]Stright concrete deck metal girder beam bridge.
    [​IMG]Second curved concrete deck bridge leading to entrance of tunnel portal. All bridges scratched built

    Sent from my Galaxy Nexus using Tapatalk

  20. cosmic

    cosmic TrainBoard Supporter

    117
    0
    8
    It's just a cropped copy of Faller's advertising photo. I swore starting out I would never build a styrene kit. Then I saw this, and couldn't contemplate not having it! It'll go wherever I can find 2 feet of room for it.

    Bietschtal Bridge.jpg
