    In my last video, I used a light ring I made from a web site I found:
    http://www.instructables.com/id/Build-ring-light-for-your-camera/
    You use 3 rings of LEDs.
    70 mm
    90 mm
    120 mm

    By placing the LED rings inside each other, you make a real nice camera light. No shadows for close up shots.
    Each ring is made to work on a car so each runs off 12v.
    I got a 12V 3800ma rechargeable battery pack from Amazon to power it instead of what the site said. The power pack has a switch on top and a battery condition indicator on the side. I hot glued an old UV filter to the frame. The frame is actually made from a left over piece of plastic coated card stock.
    Just thought I would share this simple idea.


    Which leads into another use of the rings - another thread.

  2. zscaler

    zscaler TrainBoard Member

    1,286
    154
    25
  3. Loren

    Loren TrainBoard Supporter

    1,532
    80
    32
    Excellent information Dave for improving our images.

    Thank you for sharing and it really isn't so off topic as you may think.

  4. zscaler

    zscaler TrainBoard Member

    1,286
    154
    25
    [​IMG]

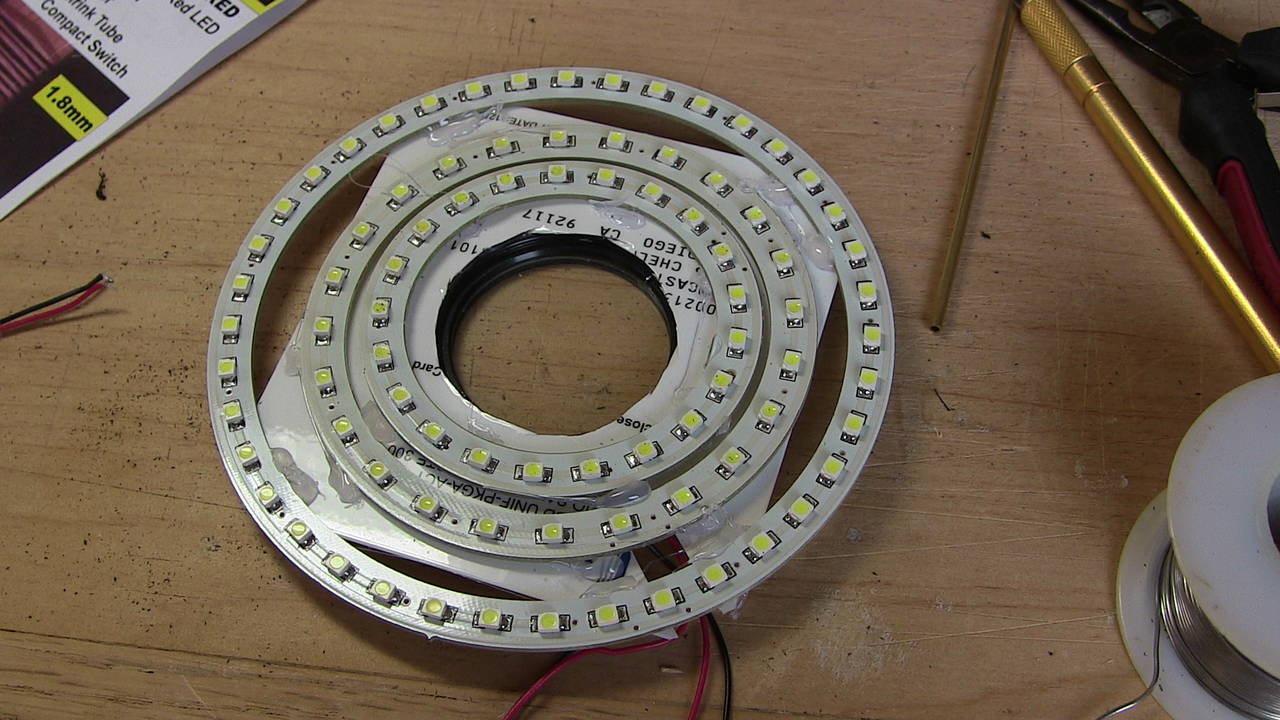

    The three rings glued to the cardstock.

  5. zscaler

    zscaler TrainBoard Member

    1,286
    154
    25
    [​IMG]

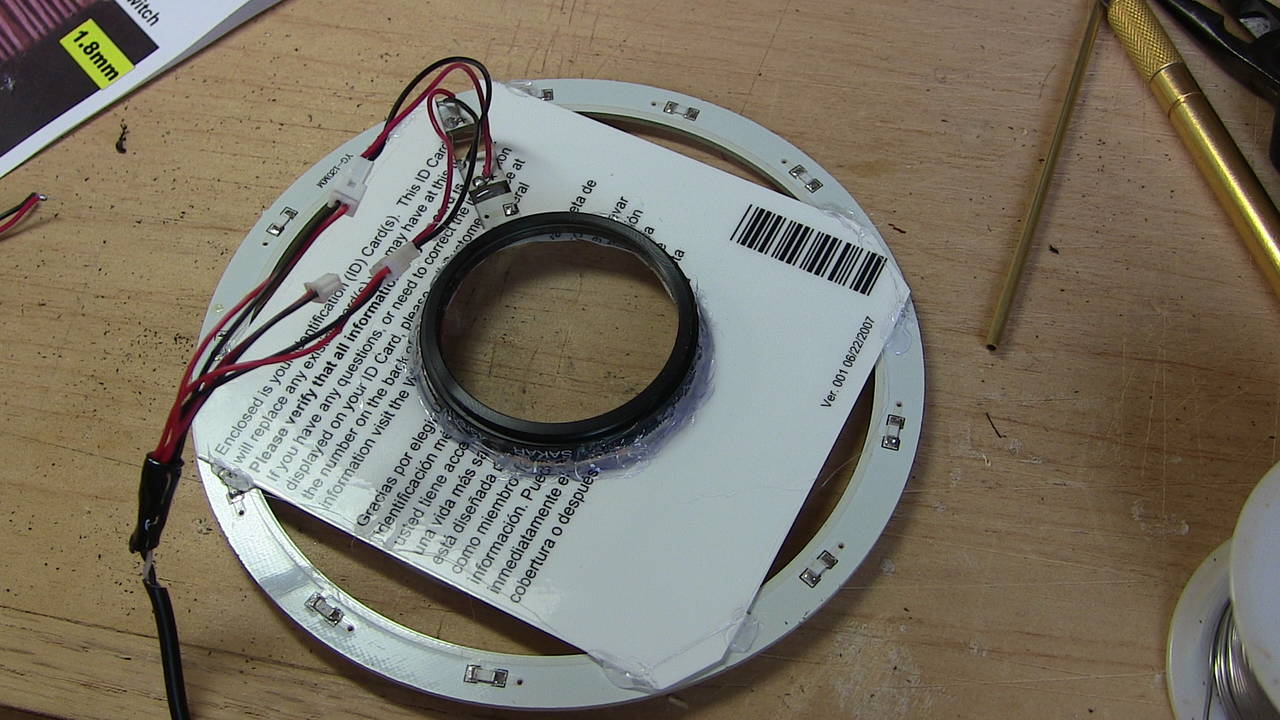

    Seen from the back. UV filter glued on. Slot in cardstock for wires.
