Big Fellow: 86' Auto Boxcar

minzemaennchen Feb 2, 2021

  1. minzemaennchen

    minzemaennchen TrainBoard Member

    1,491
    443
    33
    Always wanted some of those impressive cars, so here we go. This time it's a hybrid model: all etched metal parts apart from the Dreadnought ends, which are 3D printed to better show the prototypical shapes. This car series is not for sale yet, I need to do some re-design, most notable the coupler attachment, body-mount is only suitable from R300+ and long shank trucks are not available or there is no willingness to make them available to the public. So stay tuned...

    [​IMG]

  2. Kez

    Kez TrainBoard Member

    758
    672
    32
    Incredible work, Gerd! She's a beautiful monster! ;)

    LWR21 and Hardcoaler like this.
  3. JoeS

    JoeS TrainBoard Member

    3,208
    1,235
    64
    Absolutely one of my favorites! A long shank coupler would be the solution. Got to be a way to modify one. Such a great piece!

  4. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    22,047
    27,616
    253
    Are you sure that's not an N scale model, because it looks fantastic! Wow! Great work!

    Kurt Moose and Hardcoaler like this.
  5. shortpainter

    shortpainter TrainBoard Member

    278
    900
    20
    Amazing! The door details are really clean. Everything looks highly accurate.

  6. minzemaennchen

    minzemaennchen TrainBoard Member

    1,491
    443
    33

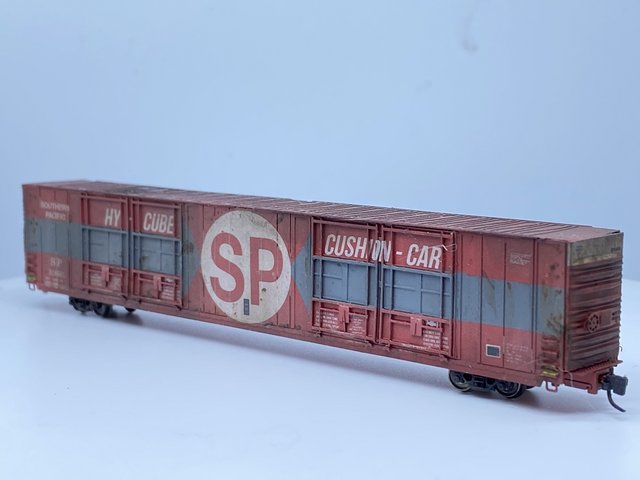

    Here now in proper SP look
    [​IMG]

  7. JoeS

    JoeS TrainBoard Member

    3,208
    1,235
    64
    Your weathering is absolutely second to none!

    MMR283, HoboTim, Kurt Moose and 2 others like this.
  8. minzemaennchen

    minzemaennchen TrainBoard Member

    1,491
    443
    33
    Here in Chessie colors. Couplers are now truck mounted.
    [​IMG]

    [​IMG]

  9. Hardcoaler

    Hardcoaler TrainBoard Member

    10,744
    45,352
    142
    That's some great work! I always loved seeing those impressive cars when I was young.

  10. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    22,047
    27,616
    253
    Love it! On a side note, Ford requested 4-door cars while GM and Chrysler requested 8-door cars like the above.

    Kurt Moose and bostonjim like this.
  11. ddechamp71

    ddechamp71 TrainBoard Member

    2,153
    653
    46
    Awesome, like all your products... :D

    BTW, would you be willing to post here a schematic of this car's coupler system ? I'm considering modifying my AZL autoracks, roughly the same lenght and same proportions, fitting MTL couplers on these.. :)

    Dom

  12. CNE1899

    CNE1899 TrainBoard Member

    1,112
    1,891
    36
    Gerd,
    Really nice details and paint schemes!

    Scott

  13. minzemaennchen

    minzemaennchen TrainBoard Member

    1,491
    443
    33

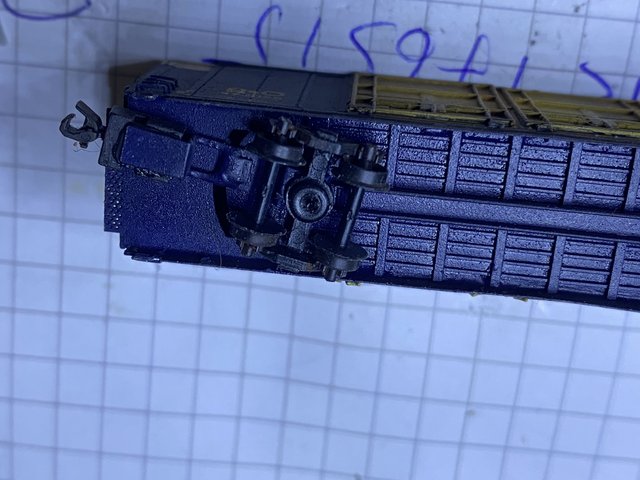

    Like your thinking, but unfortunetly my design will not help you at all. It's an multi-folded etch piece which is glued on the to top of a truck, therefore it would add to your ride height. The bigger issue is this coupler assembly is supported by a nodge which is sliding in a half-circle opening in the car floor to prevent sagging. See picture
    [​IMG]

    ddechamp71 and Kurt Moose like this.
  14. SJ Z-man

    SJ Z-man TrainBoard Member

    3,013
    1,023
    62
    AZL tried to make an articulating coupler for the Autoracks (one reason for their weight - leverage), like an N manufacturer made, put could not get reliable swing (too much friction). Therefore their long coupler.

    Gerd, those look Soooo good. A nice morning wake up for me (SP) and the Mrs (Chessie)

  15. ddechamp71

    ddechamp71 TrainBoard Member

    2,153
    653
    46
    Ok minzemaennchen, thank you anyway for your reply. ;)

    Dom

  16. kevsmith

    kevsmith TrainBoard Member

    1,986
    4,757
    63
    Once stood at the side of one of the real ones in Sacramento, WITHOUT A CAMERA, Dohh!, hugeley impressive vehicle

    Made our British stuff look tiny in comparison

    Kev

  17. southernnscale

    southernnscale TrainBoard Supporter

    523
    1,176
    29
    I tried my luck with one! not as great as Gerd! His being etch metal has way more weight and mine are to light but I use a set of passenger car trucks fit well just need to change the color so the don't stand out as much. this one 3D printed not the best! but I tried! did this one last year just setting on the tracks in the yard!


    Attached Files:

    ZFRANK, Curn, Kurt Moose and 4 others like this.
