    This will be the start of my new build the River Harbor Belt Line, a switching layout. The area is fictional but will be serviced by fallen flags of UP mainly MoPac, Texas Pacific. I will model two eras operating in the 50's with steam and also 80's with GP9, GP15 and GP38-2's

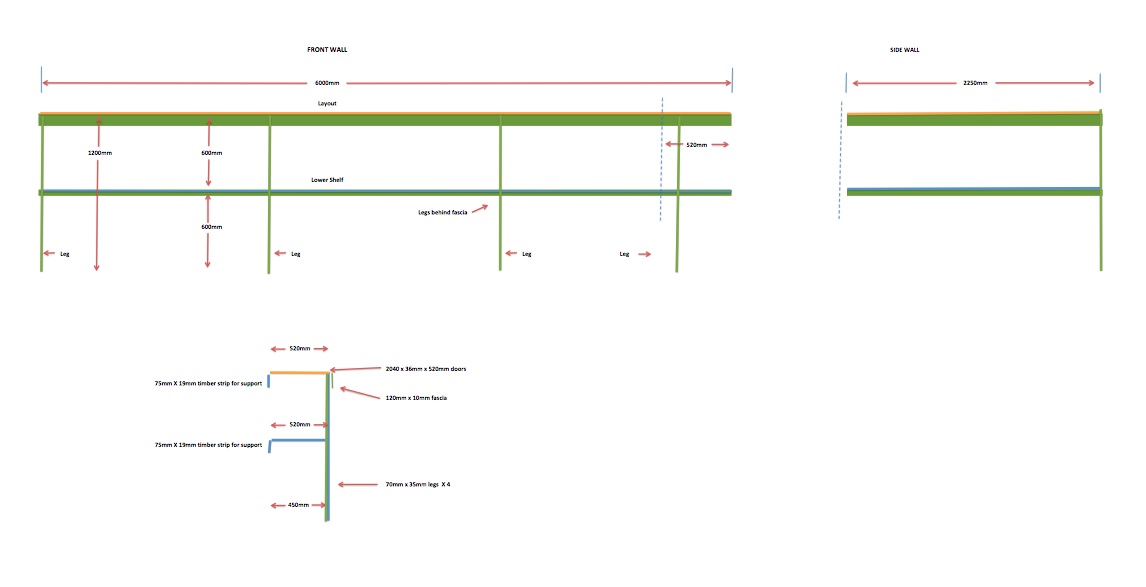

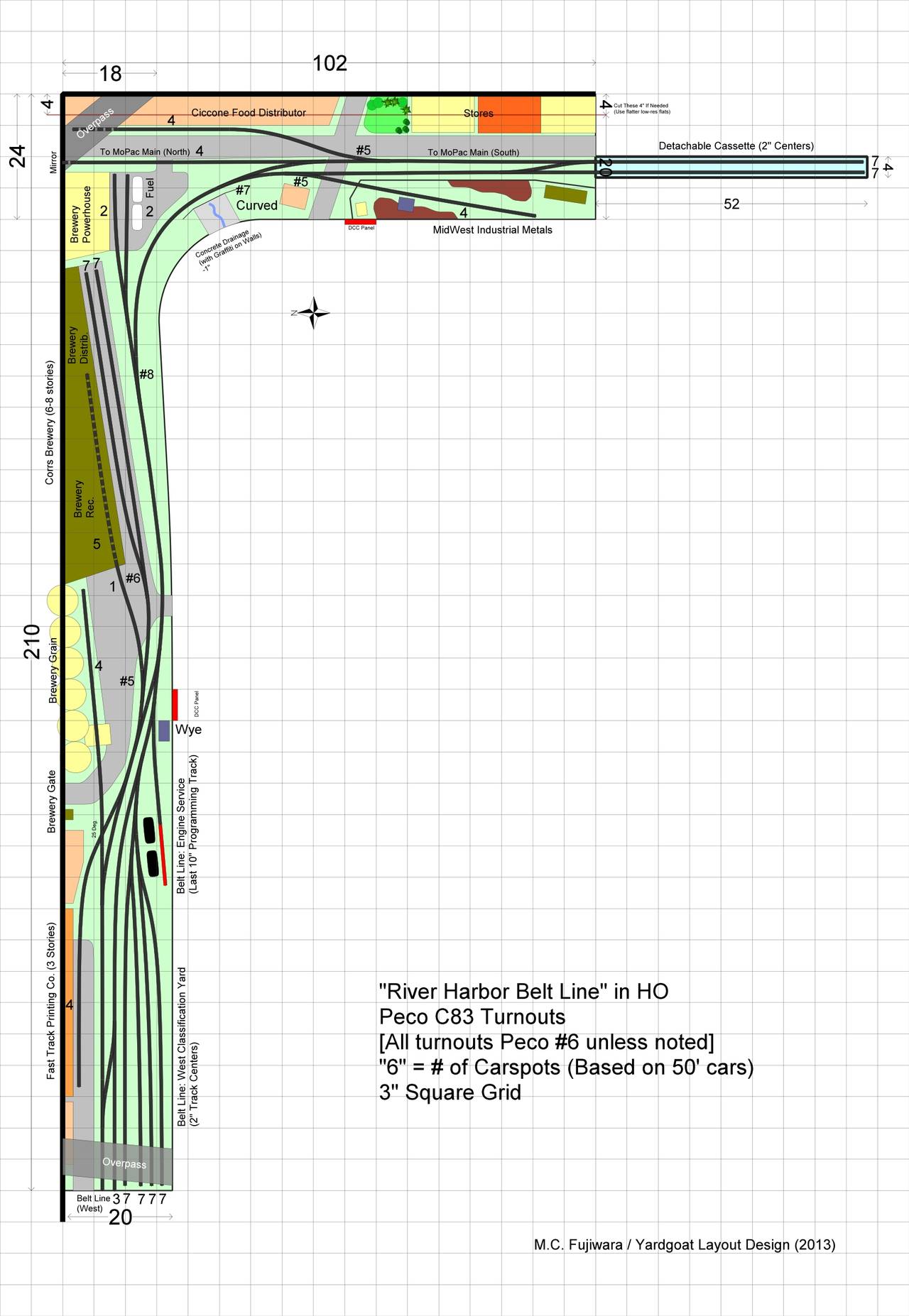

    Here is a design of the layout and benchwork, the track will be Peco code 83 with peco electrofrog switches. The control system will be NCE DCC and all locos will be DCC + sound

    [​IMG]

    [​IMG]

    The layout will be in my garage approx 5.5 metres (18 feet) X 2.7 metres (9 feet) with a detachable cassette

    [​IMG]

    All going well the bench work will commence in May 2014 although i have been busy purchasing locomotives and rollingstock and track for the build

  2. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,522
    22,599
    653
    You've abandoned the original plan, and started over again?

  3. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119
    Had a rethink and shortened the top length and actually removed the port at this stage. It is still an option in the future however this design has lots of switching opportunities for two too three operators.

  4. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119

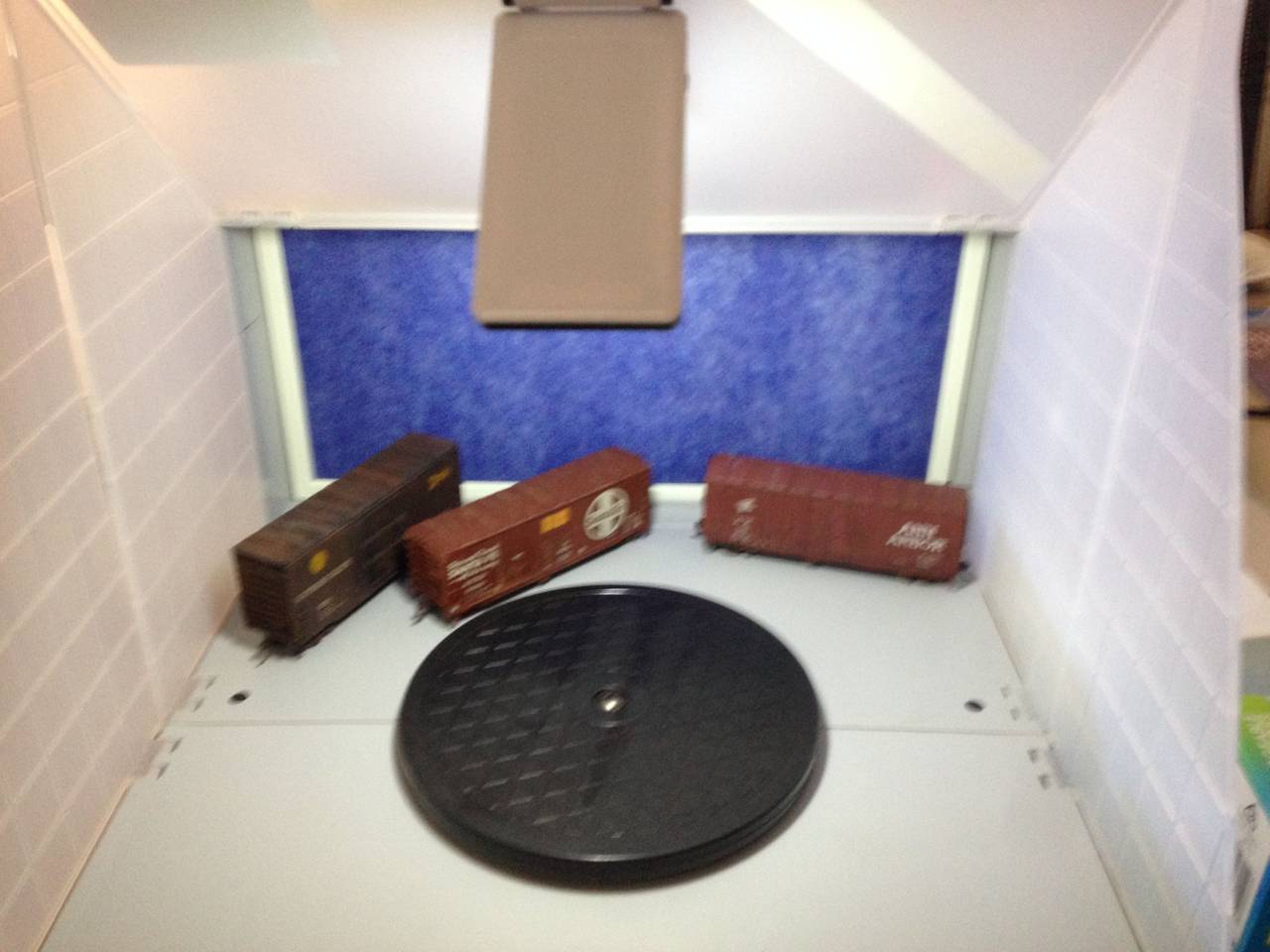

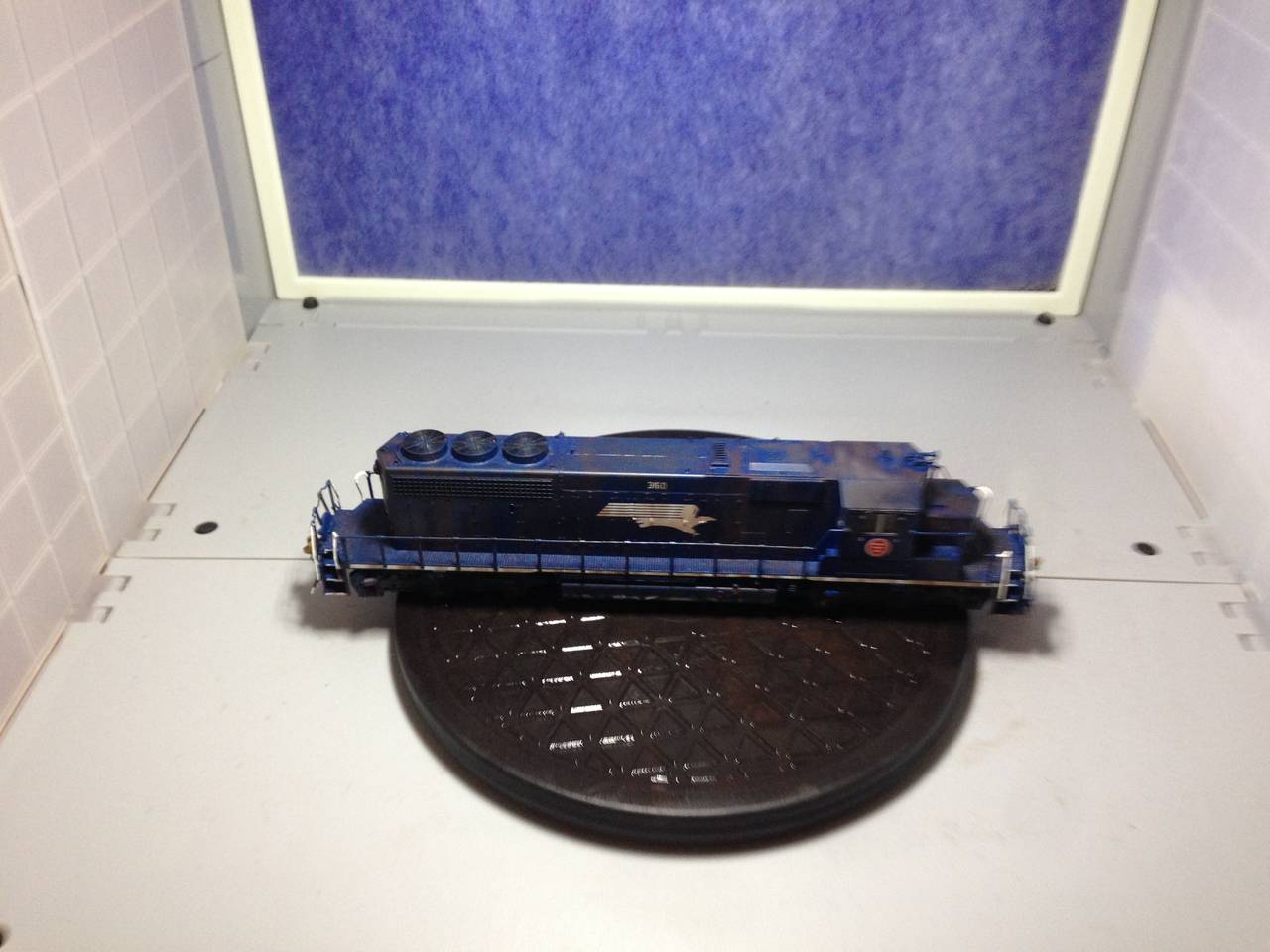

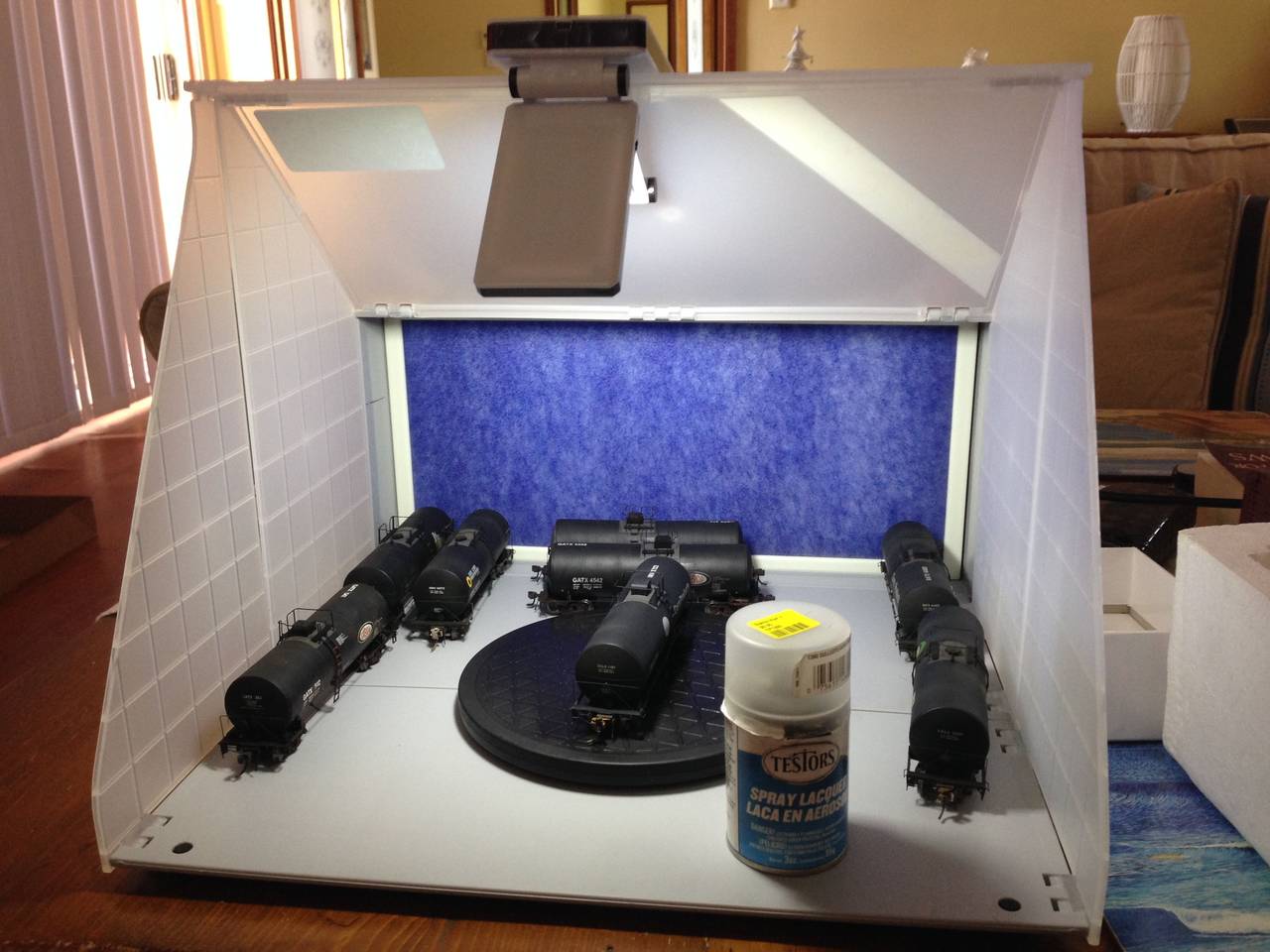

    Today I tested my new spray booth by spraying dullcote on previously weathered cars. I am really happy with this booth it has a filter and fan and is easy to assemble and disassemble when finished

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  5. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,522
    22,599
    653
    Please tell us more about your spray booth!

    gjslsffan likes this.
  6. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119

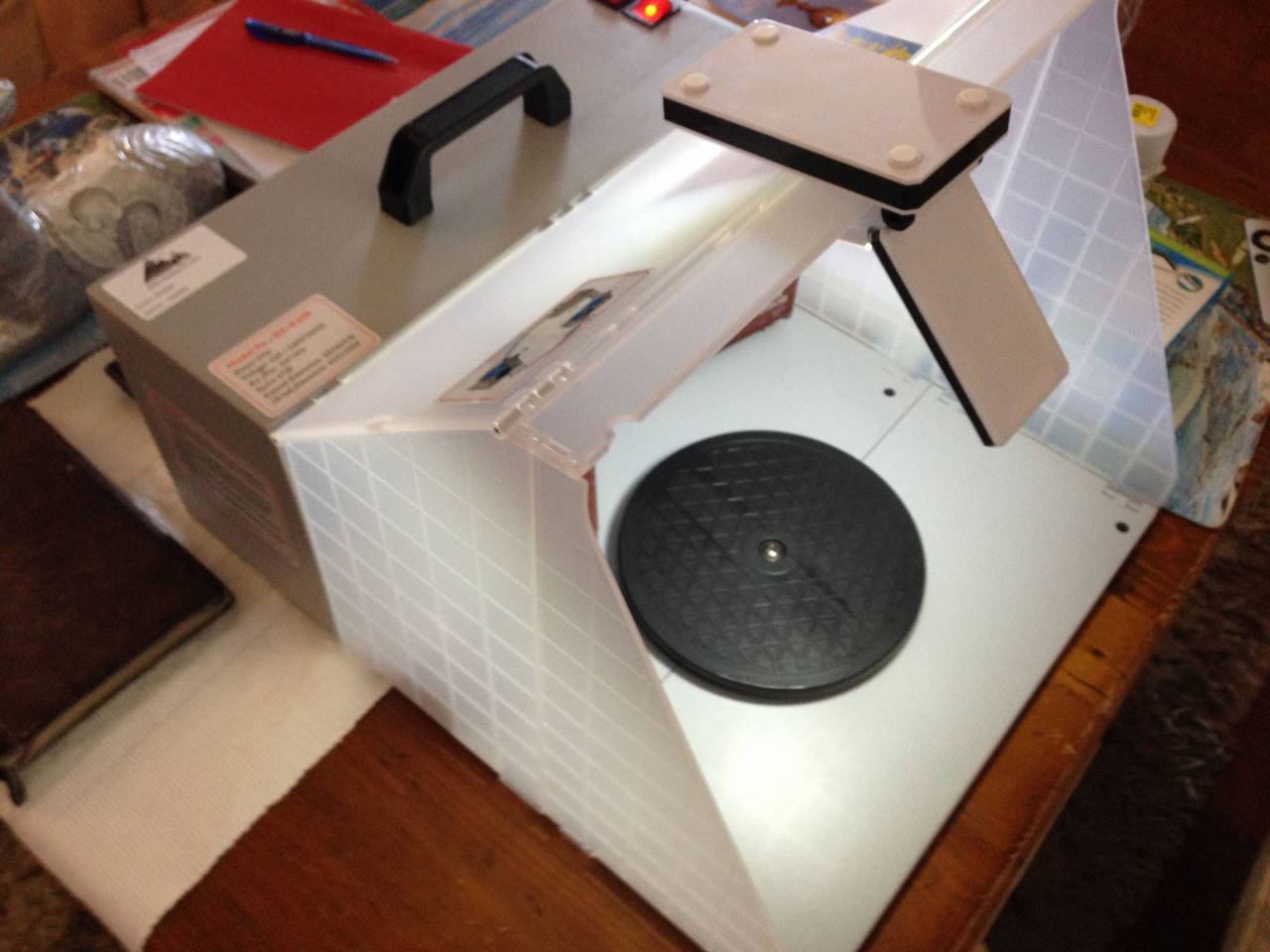

    The E420 Airbrush Spray Booth will extract overspray away from you and your work and the filter the air.

    • Powerful air extraction.
    • Multi-layer air filter.
    • Quiet Operation.
    • Folds up for easy storage and transport.
    • Includes turntable
    Extension hose kit ducts spray fumes to the outside.

    • Hose extends from 0.7 to 1.7m
    • Flat exhaust outlet easily fits into windows or door gaps.
    HS-E420K.jpg Cost is approx $150 US

    gjslsffan likes this.
  7. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,522
    22,599
    653
    Interesting! Wish I had know about this a couple of months back. I just ended up building my own booth... Oh well.

  8. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119

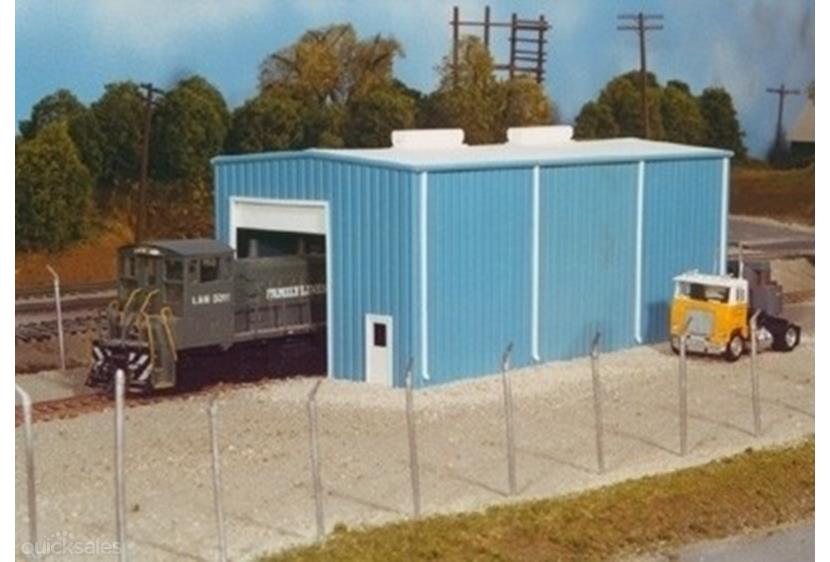

    Here are some of the buildings I will be using on the layout although a couple will be modified

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    gjslsffan likes this.
  9. StickyMonk

    StickyMonk TrainBoard Member

    1,941
    129
    36
    What is that building at the bottom? Looks kind of what I need to make a building flat at one end of my layout. I find that easier than making a back scene...

    Looks like it will be an interesting layout to operate.

    gjslsffan likes this.
  10. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119
    Matt,

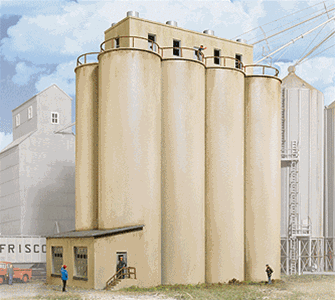

    The building is a walthers

    gjslsffan likes this.
  11. Alan

    Alan Staff Member TrainBoard Supporter

    10,798
    460
    127
    I can sense you gearing up to make a start on your new layout Paul. Time will fly once past Christmas :)

    gjslsffan likes this.
  12. Flash Blackman

    Flash Blackman TrainBoard Member

    13,326
    498
    149
    Looks great! Lots of fun ahead.

  13. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119
    Thanks Alan and Flash, yes all going well we will be in the new house in April.

    All switches have been ordered, I hVe gone with Peco code 83 electrofrog. The switches will be operated using caboose industries spring loaded ground throws so no motors to keep it simple.

    Have enough on the roster to run either a modern era or steam era but most of the time it will be modern circa 1980 with Gp9, Gp7, Gp38-2, Gp15 and Sw1

  14. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119

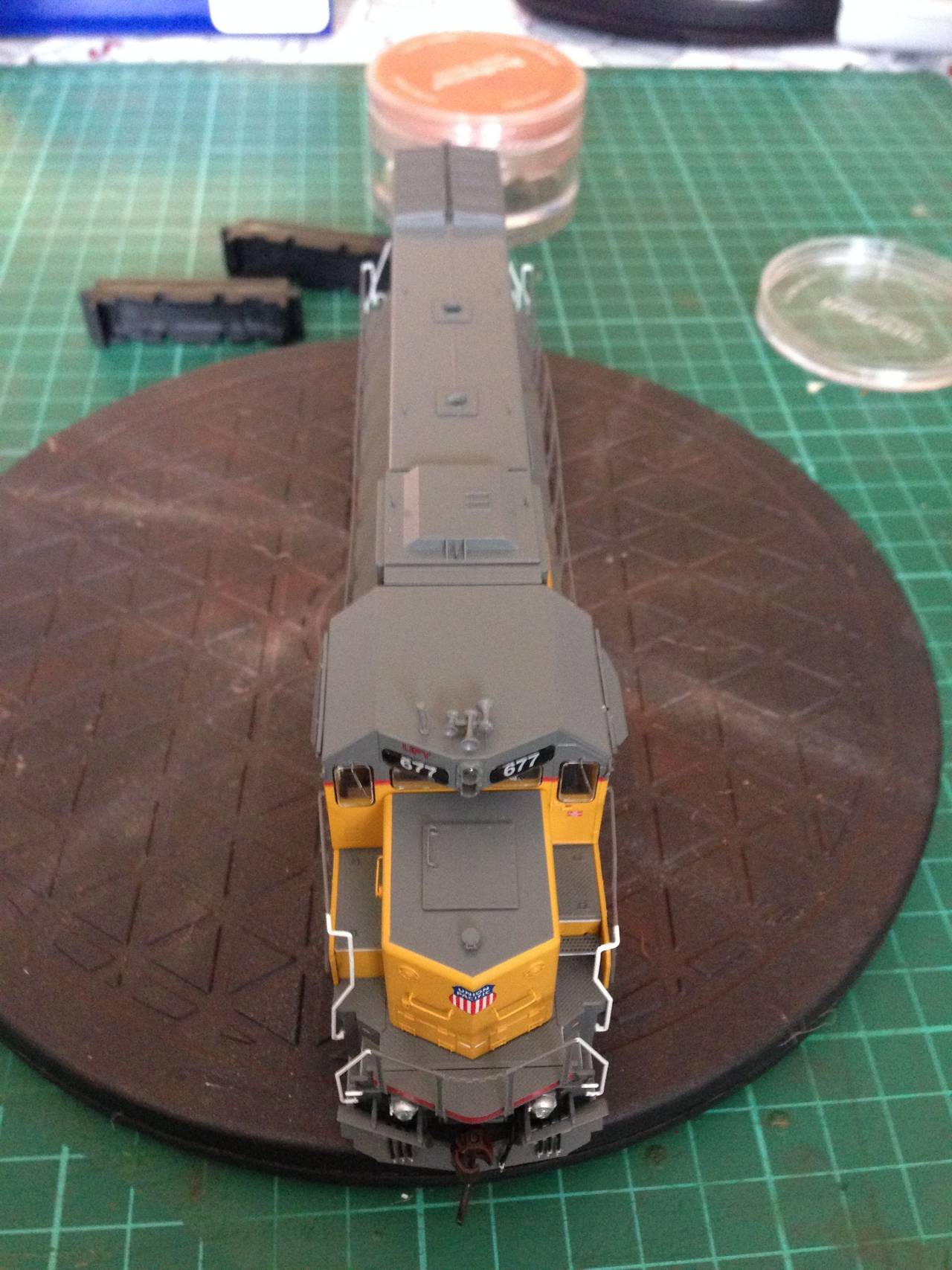

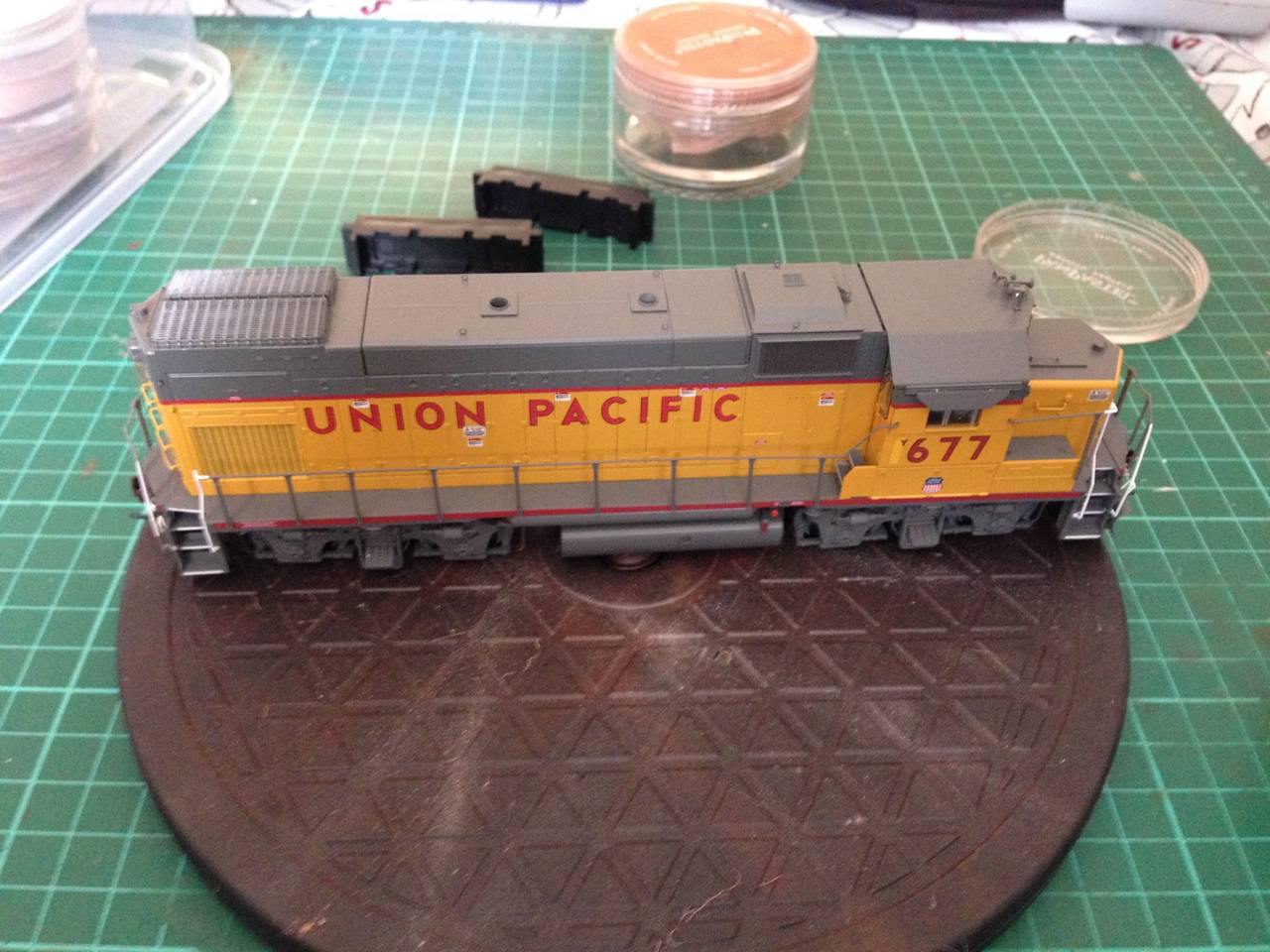

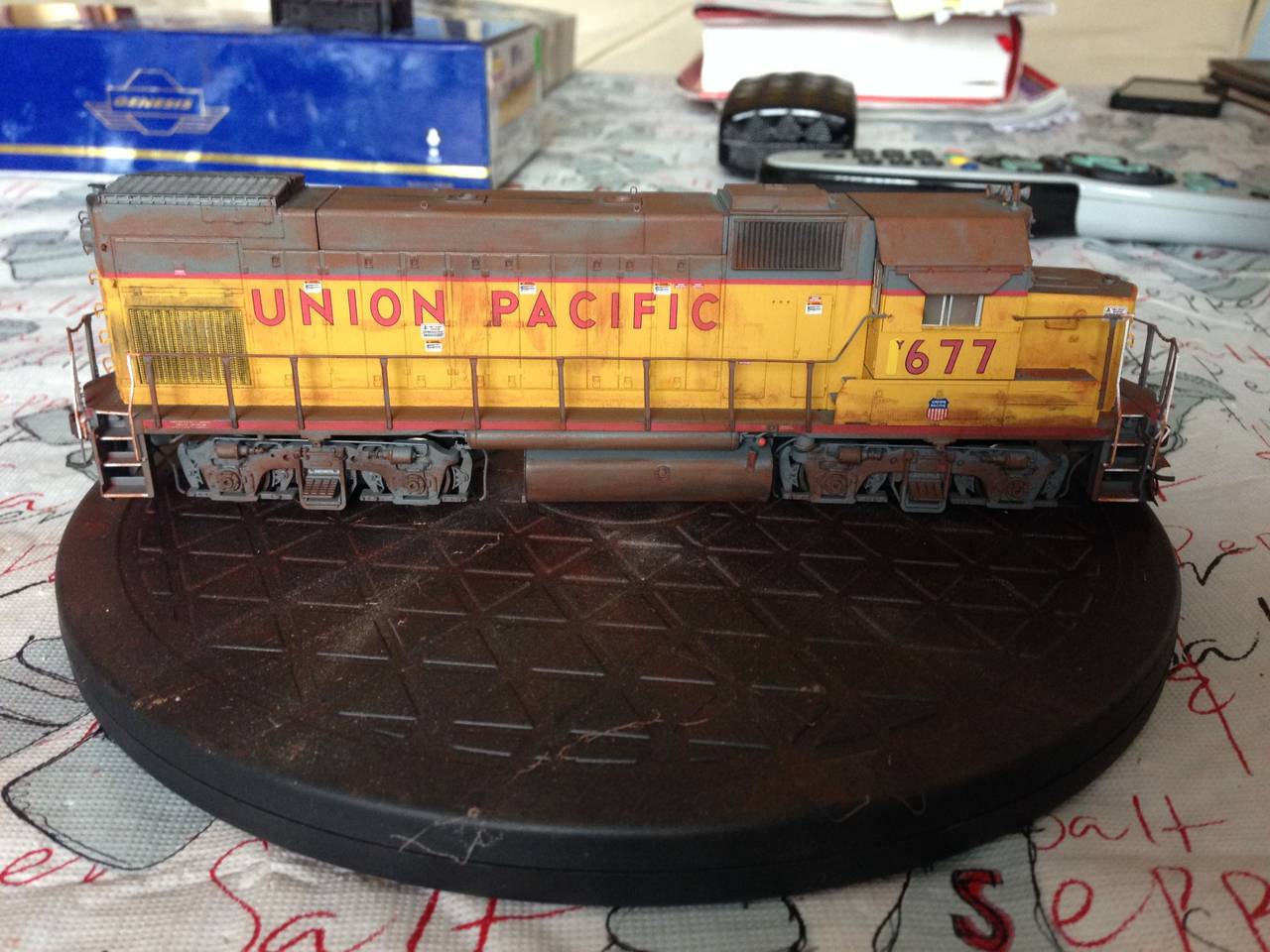

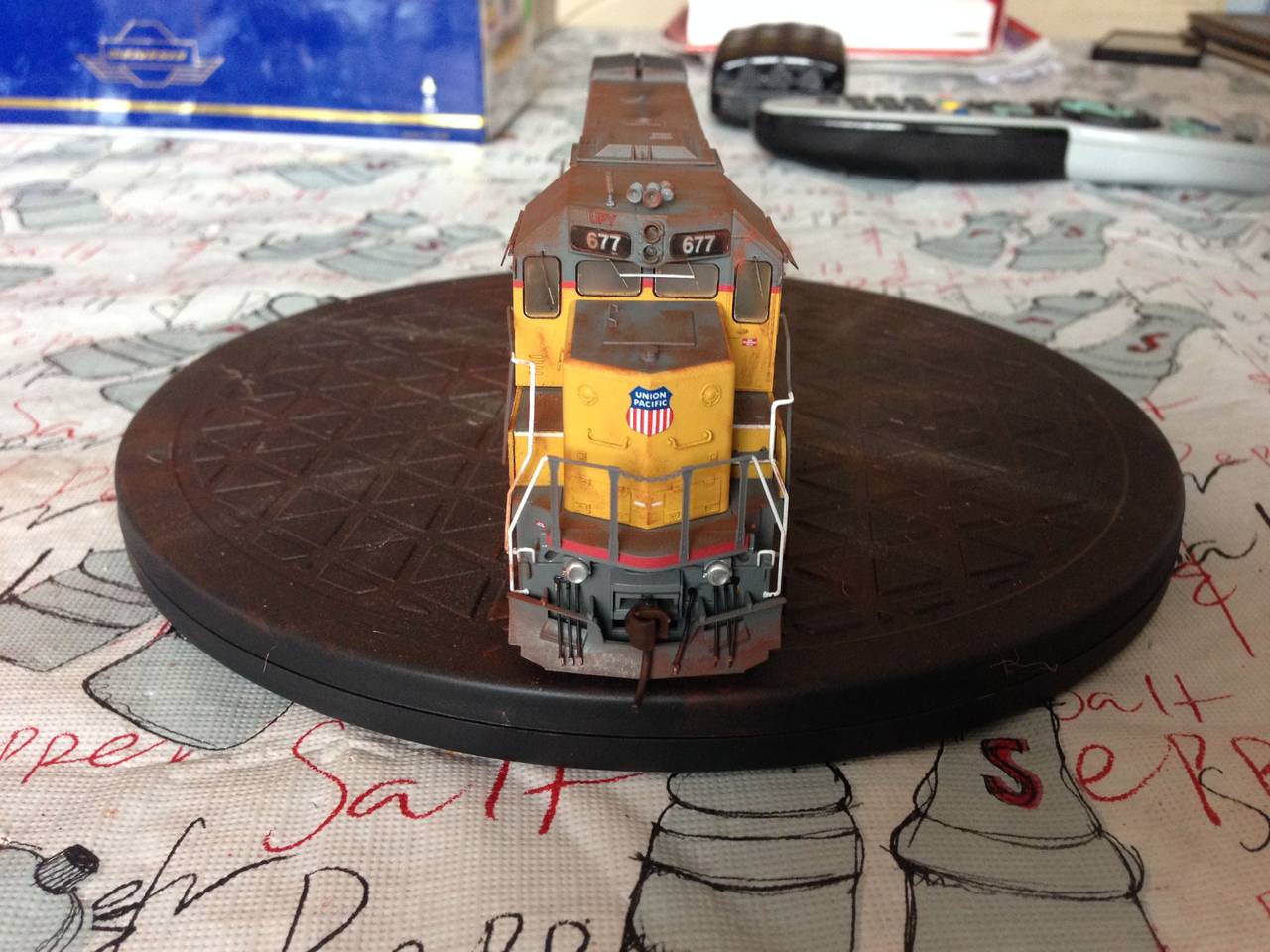

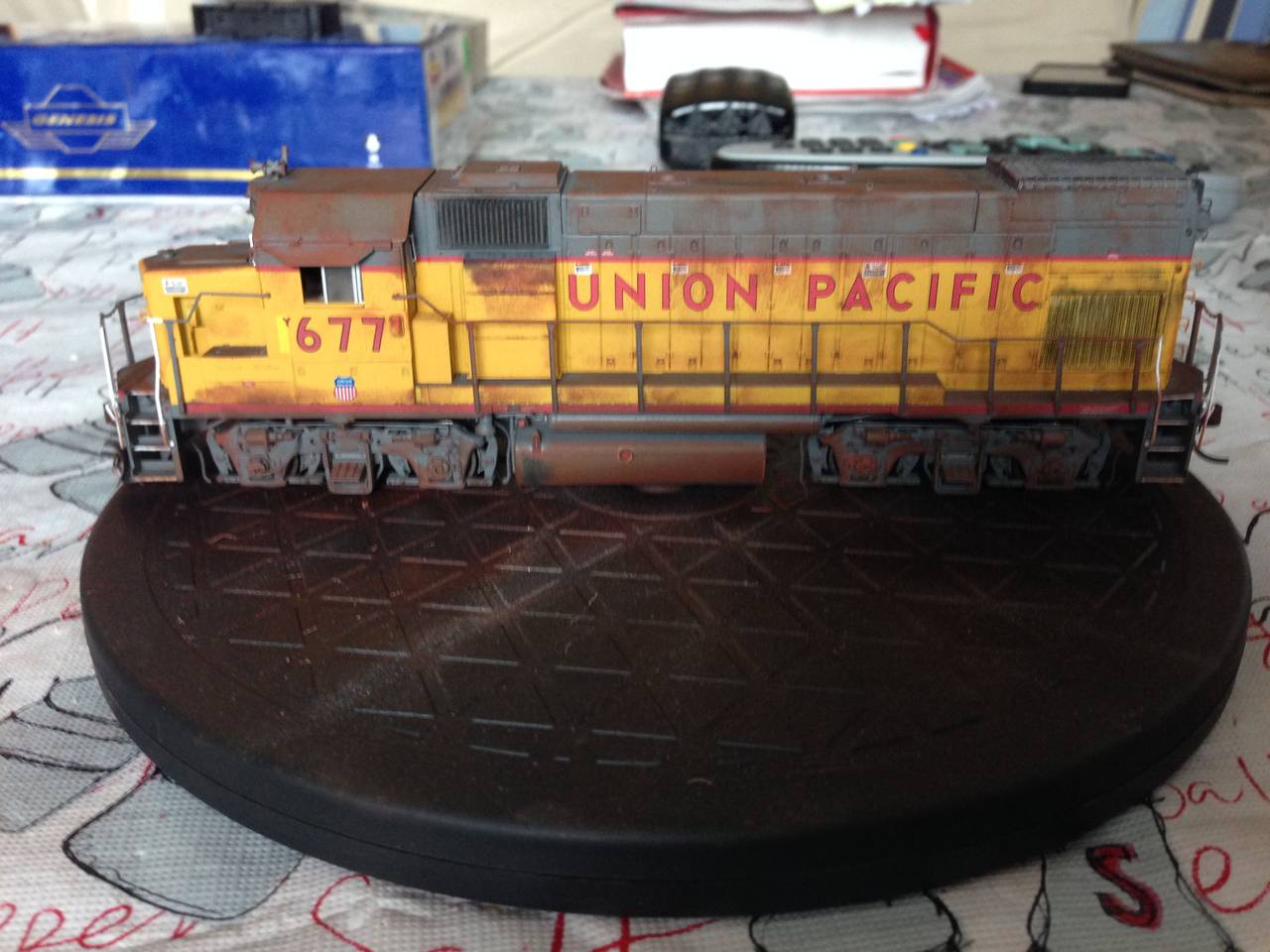

    Today I weathered a number of cars and this GP15-1

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    [​IMG]

    gjslsffan likes this.
  15. Flash Blackman

    Flash Blackman TrainBoard Member

    13,326
    498
    149
    Now that is really looking good! More grimy black around the turbocharger on the top for exhaust streaks. Maybe just use chalk for that.

  16. Shortround

    Shortround TrainBoard Member

    4,291
    4,917
    93
    Where could one purchase this spray booth?

  17. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119
  18. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119
    Yes needs some grimy black, will have to apply some

  19. RGW

    RGW TrainBoard Member

    2,015
    2,410
    64
    This is great stuff Paul. M

  20. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,721
    1,109
    119
    Thanks really looking forward to building the new layout, all going to plan it will commence in April
