Question Brake wheels, ladders, etc.

eaelec Mar 17, 2021

?

Do you have any use for a set like this?

  1. yes

    13 vote(s)
    86.7%
  2. no

    2 vote(s)
    13.3%
  1. eaelec

    eaelec TrainBoard Member

    209
    506
    29
    Last week I went looking for Micron Art set 91406 (see photo) for a project, no stock anywhere that I can find.
    I'm thinking of making a similar PE set myself with a few extra thing like stirrups. How many would be interested assuming the price was reasonable?

    Screenshot from 2021-03-17 12-57-09.png

    CNE1899, Kez, bostonjim and 4 others like this.
  2. Doug A.

    Doug A. TrainBoard Supporter

    3,477
    113
    54
    I would be interested...my thoughts:
    1. I would prefer some modern brakewheels to be in the mix if possible
    2. And yes stirrups since who knows if we'll ever see Atlas re-release the BLMA stuff. (here is the BLMA offering, for reference: https://www.walthers.com/freight-car-stirrups-7-styles )
    3. Not sure how feasible these would be in Z, but maybe consider coupler platforms as well. (BLMA N version for reference: https://www.walthers.com/freight-car-coupler-platforms ) Wouldn't be a deal-killer for sure, but often times there is space left in etching artwork so that would be a good filler item.

    I would be in, depending on the end-result and price. Can't say a good number at the moment but probably would commit to 5-10 sets.

    Last edited: Mar 17, 2021
    Kurt Moose and bostonjim like this.
  3. ddechamp71

    ddechamp71 TrainBoard Member

    2,134
    612
    44
    I would be as well.. ;)

    Dom

  4. bostonjim

    bostonjim TrainBoard Member

    710
    828
    22
    I'm in also. It is always good to have scratch-building PE parts. They are the best scaled, in my opinion. Based on price I'll take 5-10 sets. Thanks for your efforts on our behalf. Jim

  5. bostonjim

    bostonjim TrainBoard Member

    710
    828
    22
    I second Doug on the coupler platforms. If possible, they'd look great. Jim

  6. Kez

    Kez TrainBoard Member

    587
    87
    23
    Yes, please!

  7. SJ Z-man

    SJ Z-man TrainBoard Member

    2,814
    682
    50
    The perforated coupler platforms are useful from Loading Ramps, etc. Make a pair of longer ones (maybe 2x), Smaller holes too.

    Also missing in the brass world chain link fences (to scale this time ! NOT 12' sections or 8' high before the barbs). Need Gates, Corner Bracing (some only have 1 pair of bracing and 3 panels (100' feet) and no gates !

    Micron-Art had the most versatile, best etch: https://www.hobbylinc.com/htm/mcr/mcr91405.htm
    The Narchitect is pretty good: https://thenarch.com/products/12-security-fence-wgates-barbed-wire-posts-140-z-scale-feet

    Gold Medal models 160-1, 2: http://www.hobbylinc.com/htm/gmm/gmm1601.htm http://www.hobbylinc.com/htm/gmm/gmm1602.htm

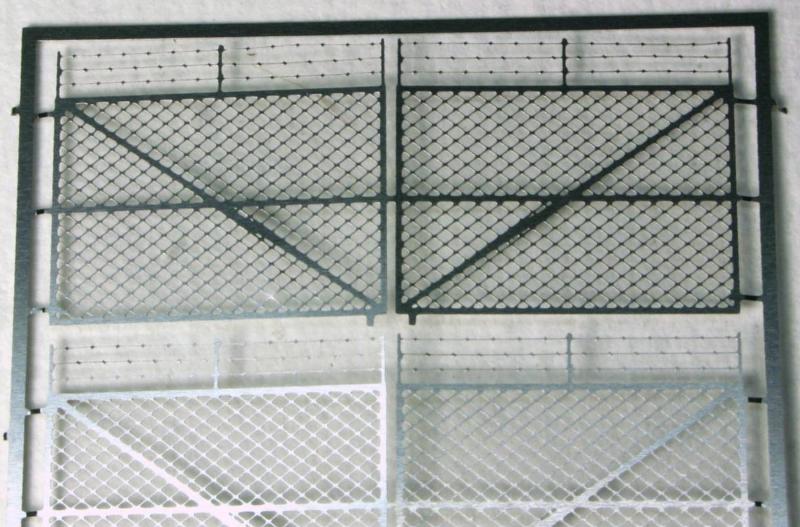

    Defunct Traincat: https://www.traincat2.com/images/models/1001807.jpg

  8. eaelec

    eaelec TrainBoard Member

    209
    506
    29
    The coupler platforms look easy to do, the only question would be material limitation. I was looking at using .02mm brass and if the spaces are too tiny it may not be possible etch holes in the grid.

    I have identified 3 styles of wheels I need for my project. If there are other styles you would like to see post a photo.

    CNE1899, Kurt Moose and bostonjim like this.
  9. rray

    rray Staff Member

    7,257
    3,900
    123
    I've dabbled in brakewheels a bit in my day. Over the past 20 years I have accumulated the worlds largest personal collection of etched brass brakewheels in every style and size for both N and Z projects. A few I bought but most I had to draw up in Corel and have etched. I have etched some myself, but my etchings always turn out poorly compared to Hobo Tim's, or Chris333's. I ended up trading my skillsets for others skillsets to get my brakewheel collection. I gotta make these last the rest of my life!

  10. Kez

    Kez TrainBoard Member

    587
    87
    23
    Robert, you have a real problem. :LOL:

    CNE1899, bostonjim and Kurt Moose like this.
  11. bostonjim

    bostonjim TrainBoard Member

    710
    828
    22
    Hey, Buddy, Can you spare a brake wheel or two...? Too funny. I admire your optimism. Jim

    CNE1899 likes this.
  12. eaelec

    eaelec TrainBoard Member

    209
    506
    29
    Doug:
    I found this picture of a 1 to 1 scale coupler platform. it looks to me that if I could manufacture one in true Z scale it would be invisible to the naked eye!

  13. rray

    rray Staff Member

    7,257
    3,900
    123
    Not invisible, yes you can see them. I raster them for my cars, and I really like the added detail. It's especially nice when light goes through the slots or holes. These are on some 42' drop bottom coal gondolas I made:

    This is an MTL 40' boxcar, that I made a new roof and rastered roofwalk with slotted walkway. The light shining through the slots adds to the realism. Showing this roofwalk to illustrate that slots instead of holes type platforms are also doable, and add to the appearance of a detailed car.
    [​IMG]

    Here you can see how platforms on coupled cars help hide the couplers and make the cars look like they are closer coupled than say, the Marklin cars with 20 scale feet between cars:
    [​IMG]

    CNE1899, mdvholland, tjdreams and 5 others like this.
  14. gmorider

    gmorider TrainBoard Member

    1,114
    1,900
    41
    Outstanding results! You are quite the "raster" in your own right. Looks close coupled to me. :D

    rray likes this.
  15. CNE1899

    CNE1899 TrainBoard Member

    286
    368
    9
    Rob,
    Man I sure can use some brake wheels, but I'm looking for 1890s to 1930s. That is what got me onto this site, I came across an image of brake wheels from your album.
    The little details do make a difference.

    Eric,
    Are you planning on having separate sheets for different items, ie, sheet of wheels, sheet of ladders, sheet of walks, etc.

    Scott

    Last edited: Apr 2, 2021
    bostonjim likes this.
  16. eaelec

    eaelec TrainBoard Member

    209
    506
    29
    Rray, what material did you use and how thick? I could not make coupler platform in the .2 mm brass I am using for the ladders and brake wheels unless I made them overscale or reduced the number of bars (or round holes).

  17. rray

    rray Staff Member

    7,257
    3,900
    123
    The rastered platforms were made from .015" white Polybak (AKA Laserboard). The brakewheels were etched from .008" brass sheet, which is the same as .2mm. The problem with making platforms from photo etched brass is the isotropic nature of etching, as it wants to etch in all directions equally, where the laser can ablate material in an anisotropic manner, meaning straight through in one axis.

    So etching a hole or slot is tricky in Z. You need to use .003" or thinner stainless steel, or be satisfied with larger holes or slots. If you have access to a fiber laser, then it gets easy.

    bostonjim and CNE1899 like this.
  18. eaelec

    eaelec TrainBoard Member

    209
    506
    29
    This is what I have so far, the set would be around 3.5 by 2.5 inches.

    CNE1899, Kurt Moose and bostonjim like this.
  19. eaelec

    eaelec TrainBoard Member

    209
    506
    29
    Just arrived today from the Czech Republic...


    bostonjim, CNE1899, LWR21 and 7 others like this.
  20. zedhed

    zedhed TrainBoard Member

    12
    6
    10
    Count me in if you are looking for customers.
