Lets see your Arnold N scale!

oldrk Jan 6, 2011

  1. oldrk

    oldrk TrainBoard Supporter

    3,700
    33
    50
    Thanks to Arnold and a few other pioneers in N scale they kept the N scale arm of model railroading going that helped us get to where we are today. Maybe not the quality we have today. But you have to admit they had some very unique items in the day. So lets ee what you have! Below is an Arnold GP9.

    [​IMG]

  2. brakie

    brakie TrainBoard Member

    1,186
    0
    27
    LOL! Looks crude to today's standards but,back in the day I thought those were tops and had 2 of them in '69/70.Your picture brings back memories of my early "sneak about" N Scale modeling.

    Indeed where would N be today wasn't for those models?

    Does she still run?

  3. oldrk

    oldrk TrainBoard Supporter

    3,700
    33
    50
    She still runs although I keep her in a display case now.

  4. randgust

    randgust TrainBoard Member

    3,390
    282
    49
    This is the locomotive that started me off on small steam in N scale and the logging layouts.

    The Arnold 0-6-0 is a very old design, going back to about '68. MT made a pilot conversion to make it into a 2-6-0. That's as close as I could get in '76 to my HVRR #5. It was repowered with a Trix U28 motor, tender trucks were swapped out twice (first time with MT trucks, second time with Kato tender trucks for pickup). The stack mod was a wood dowel turned and jammed in the brass screw stack.

    It was just 'retired' last month when I finished the new scratchbuilt 2-6-0, but it is still very much operational today. Great performer, actually, particularly after I put on the Kato tender truck pickups. One of the biggest problems with the new locomotive was getting it to run as well as this one did.

    [​IMG]

    But it finally got to the point where I'll admit that I couldn't take the wierd rod situation. I don't think anybody else tried that stunt - put one rod on top of the valve chest and another one in the cylinder. It was OK at the three-foot rule.....

  5. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    102
    149

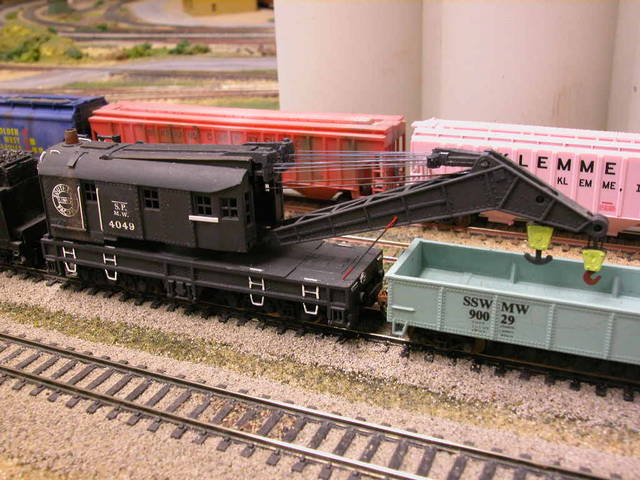

    Arnold Rapido steam crane, heavily modified and rarely operated.
    [​IMG]

    Kurt Moose and SD35 like this.
  6. r_i_straw

    r_i_straw Staff Member

    17,132
    8,706
    221
  7. r_i_straw

    r_i_straw Staff Member

    17,132
    8,706
    221

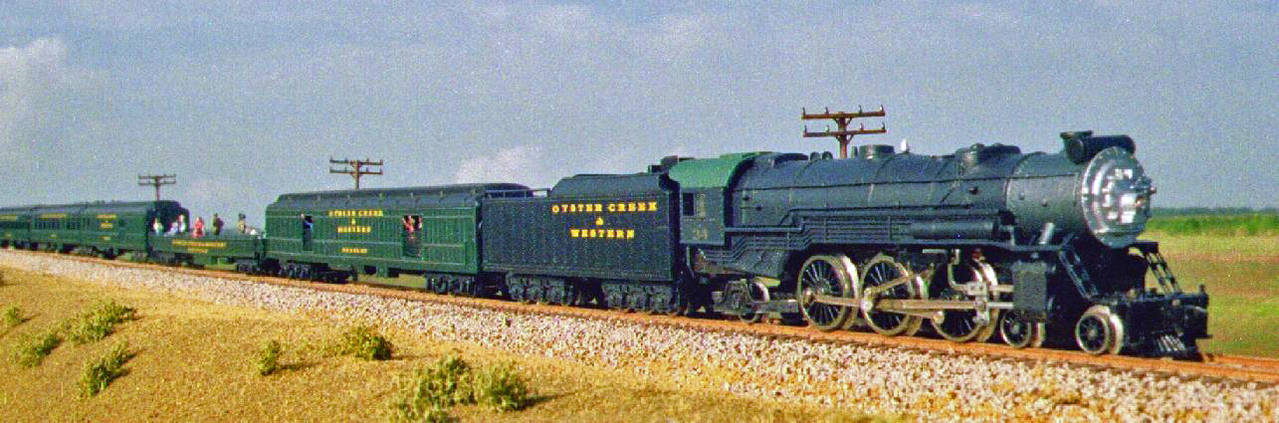

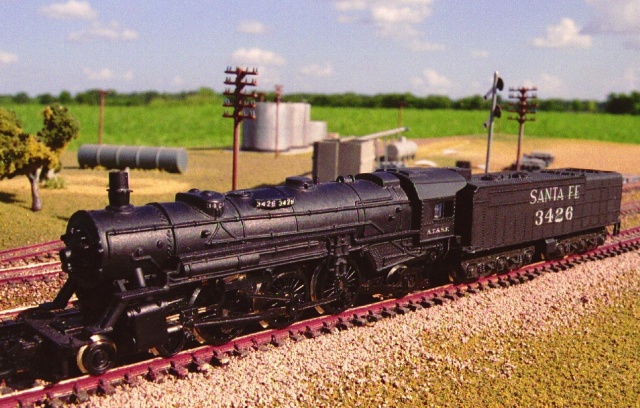

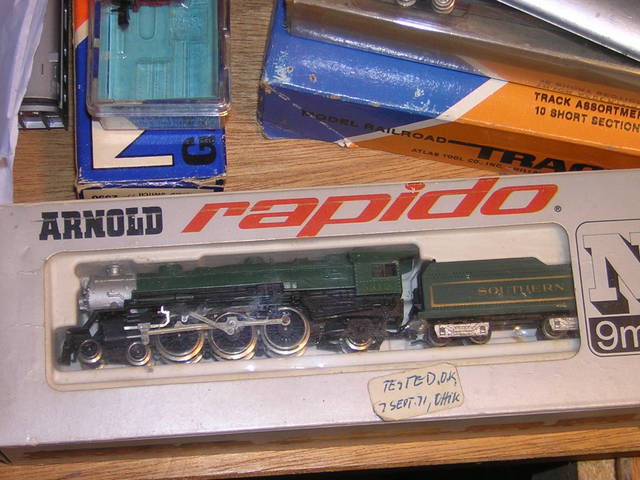

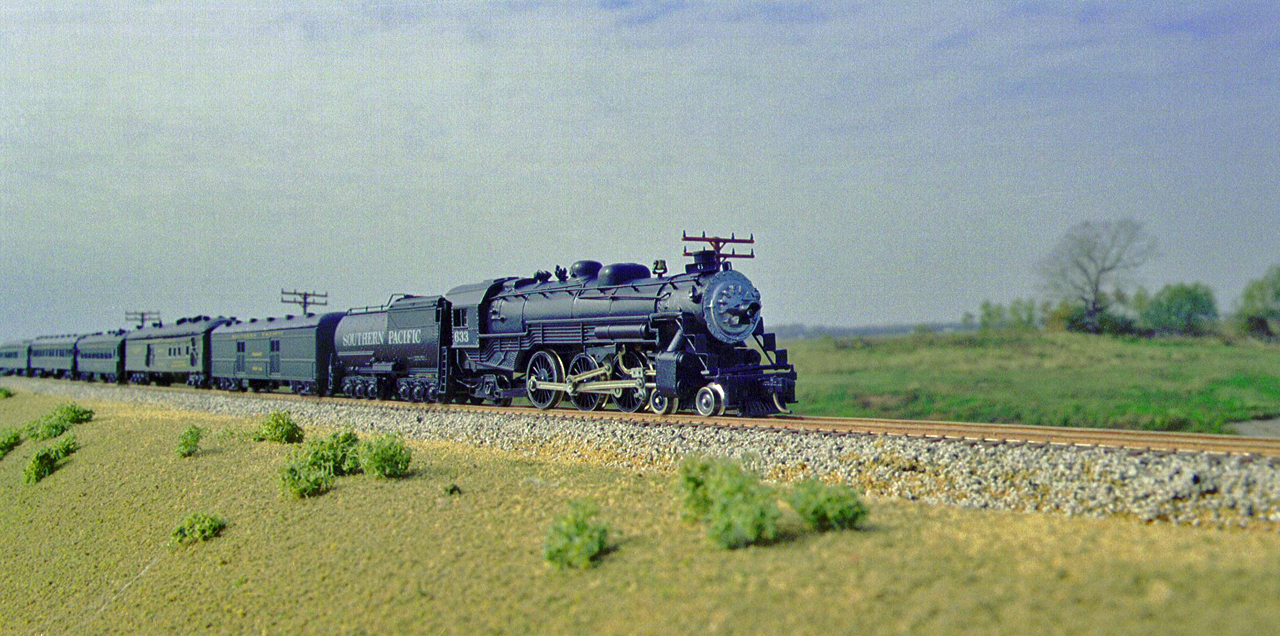

    Of course there was the old Arnold 4-6-2 that I had a bunch of. Most all have been heavily kit bashed.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Kurt Moose likes this.
  8. David Leonard

    David Leonard TrainBoard Member

    548
    0
    20

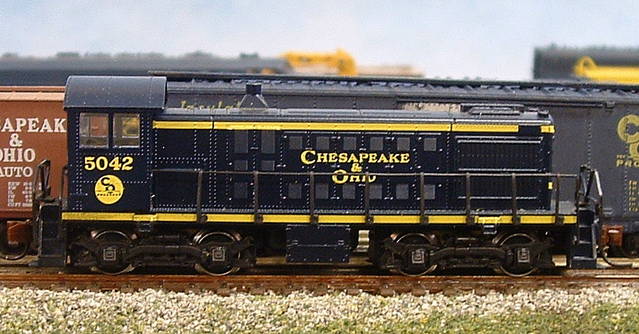

    My first N scale loco was an Arnold Rapido 0-6-0T. I bought it in 1968 but disposed of it in the early 70's. I then purchased American prototype models, the oldest of which that I still have is the Con-Cor/Kato PA1. It still runs and still makes a lot of noise and still pulls 65 40' freight cars. My only other Arnold is this S2:

    [​IMG]

  9. Grey One

    Grey One TrainBoard Supporter

    7,822
    25
    90
    Has not been run in years. She along with my other older steam needs serious cleaning:
    [​IMG]

  10. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,696
    175
    43
    My layout has been “down” two or three years, but when I was operating, I was regularly using an Arnold Rapido GP-7 which I had painfully repainted in Santa Fe zebra stripes. Here the local is taking a break from switching Johnston and the crew is heading into the “railroad men’s back fence cut through” into Lumberjack Cookhouse, a favorite spot for lunch.
    [​IMG]

    I also have an A-B-B-A set of warbonnet F9s I intend to convert to MTL couplers and put into service “someday.” Since my old layout had curves too sharp to accommodate passenger cars, it was not a priority. WHEN I get the new layout running....

    I have four Arnold Rapido boxcars, none with what I consider correct marking for my layout. Two Santa Fe boxcars with the general appearance of 40’ steel AARs have the big billboard Santa Fe circle-cross which is too late for the 1955-1957 time frame of my layout. My notes show that a boxcar painted as PRR #39857 is not correct for PRR. However, it is a single-sheathed wood Howe truss alternate-ARA design which would be good if I can find correct decals and information.
    I have one Rapido boxcar with Santa Fe markings stamped onto a translucent red “plasticy” looking body with a sheet metal underframe, which I keep as an “artifact” of early N scale.

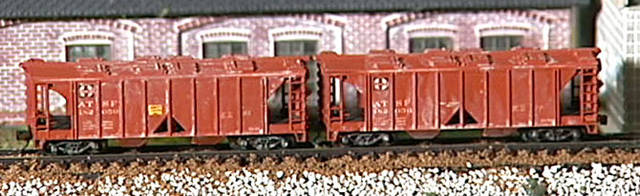

    Two Arnold Rapido 2-bay covered hoppers are in service as Santa Fe GA-52s.
    [​IMG]

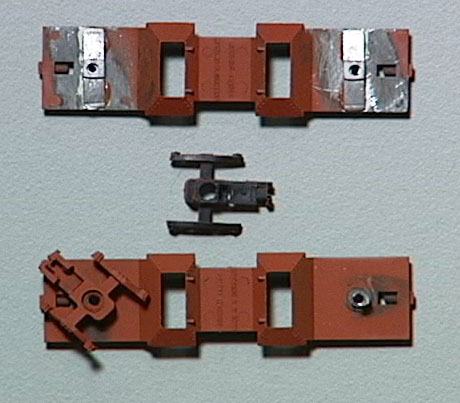

    It was a job to replace the old Rapido truck-mounted couplers with MTL trucks and couplers. I had to grind off the metal posts that held the Rapido trucks, replace them with QualityCraft bolsters (I think I have used my last set- hope I can find some more...) to mount MTL trucks w couplers.
    [​IMG]

    Here, the Rapido LOs are in a string of covered hoppers in the main body of a local train on the main at Johnston while the locomotive switches a Santa Fe class FT-T flatcar of tractors to Wayne Implement. The Conoco bulk dealer at the right edge of the photo is a scratchbuilt copy from a prototype at Sealy, Texas.
    [​IMG]

    MORE

    Kurt Moose likes this.
  11. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,696
    175
    43
    (CONTINUED)

    I have two Rapido 40’ flatcars. Forty footers are HARD to find. I may use one as the underframe of a Santa Fe sulphur gondola. (I want a fleet of at least 6 or 8 to serve my version of Galveston.) The other is a work flat with a jib crane, lettered for UP. I’m hoping I can find a plausible ATSF prototype.
    My three Arnold Rapido war emergency gondolas are a must-keep for my layout. Only one is converted to MTLs with a body mount- and it needs repair!
    An Arnold Rapido old wood caboose is lettered ATSF but I can’t find at ATSF prototype. But it is interesting. Wonder in what role what it will end up.

    A Precision Masters replacement underframe with USRA fishbelly center sill allowed MTL trucks and couplers on an Arnold Rapido reefer, here delivering processed meat products to its leased space at a harborside ice plant (uncompleted...no canopy over truckloading yet...)
    [​IMG]

    Arnold Rapido’s tankcar represents an early style still around in the 1950s. The two single dome cars here, Magnolia and Phillips 66, were relettered from Arnold Rapidos. (with single letters from alphabet sets, Dagnabit!)
    [​IMG]
    Non-working knuckles were dropped in the Rapido coupler pockets to “allow” coupling to MTL-equipped cars (but not to make it EASY...)

    And of course, I have two 60 foot streamlined RPOs to run on my Texas Chief trains.

    So Arnold Rapido is still around for me, albeit as a small presence.

  12. eric220

    eric220 TrainBoard Member

    338
    9
    13
    Not exactly "classic" Arnold, as this was a new for 2010 release, but I believe that this is the only Arnold that I own.

    [​IMG]

  13. r_i_straw

    r_i_straw Staff Member

    17,132
    8,706
    221
    About the only thing I did with this old locomotive was to fill the gaping hole in the pilot. These old Arnolds sure made a lot of noise but they could pull.
    [​IMG]

  14. oldrk

    oldrk TrainBoard Supporter

    3,700
    33
    50

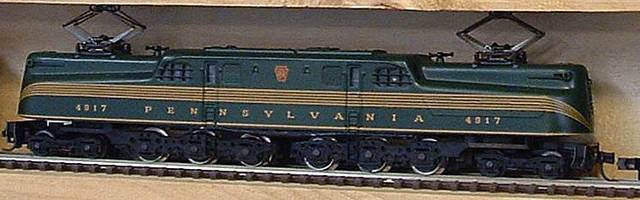

    Who can forget the fine Arnold GG1?

    [​IMG]

  15. oldrk

    oldrk TrainBoard Supporter

    3,700
    33
    50
    [​IMG]

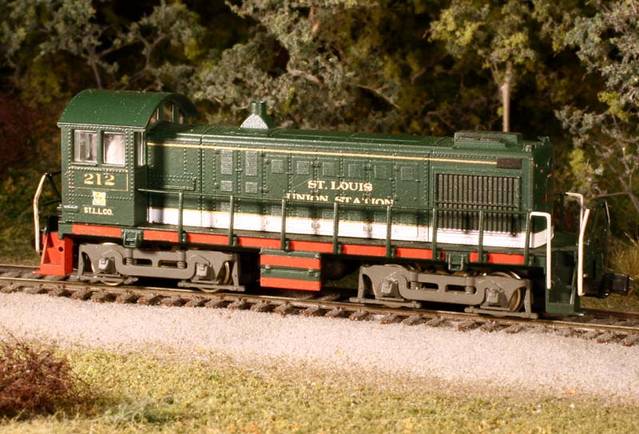

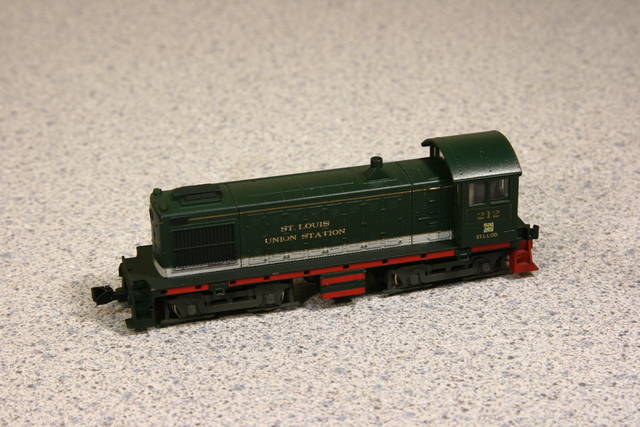

    My Arnold S2. I believe the first N scale loco with a decoder

    DCESharkman likes this.
  16. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    102
    149
    I didn't know these were AR. I have a few of them. Couplers are body mounted here.
    [​IMG]

    Actually the others were Bachmann or Atlas Austria, not AR. The looked similar.

  17. Frank Campagna

    Frank Campagna TrainBoard Member

    332
    0
    18
    r_i_straw, does that old "Baldwin" still run? I bought one years ago out of curiosity. Very primitive mechanism. I have two S-2's. One will be NYC, one probably FJ&G.

    Frank

  18. mtntrainman

    mtntrainman TrainBoard Supporter

    6,720
    474
    82
    Hey oldrk....did you buy that off EckBay a few years back ? Just wonderin.:tb-cool:


    .

  19. r_i_straw

    r_i_straw Staff Member

    17,132
    8,706
    221
    Yup. I call it old Sparky. It has two speeds, stop and warp. It leaves a large cloud of ozone behind wherever it goes.

  20. daniel_leavitt2000

    daniel_leavitt2000 TrainBoard Member

    1,348
    11
    27
    [​IMG]
    Here is my S4 in progress.

    [​IMG]
    This Grafton & Upton S4 was build using the trucks from an Arnold SW1200 mounted under the Standard Arnold S2. The only modifications needed was the removal of the brake cylinder from the AAR-A trucks.

    I replaced the wheels and gears with parts from NWSL. The motor is a Faulhaber coreless repower kit. The paint is Tamiya and the decals are custom. It is easilly one of the best running engines in my fleet and very quiet. Its amazing what a few new gears a a high quality motor can do.
