    It has been on the back burner for a year, but I finally broke the boxes back out of the cobwebs.
    I'll detail the build as well as I can, and show you as much as I can of the assembly process.

    The first item of business is to inventory the kit, ensuring all the parts are there. Next, read the instructions a couple times to get the feel for what you're about to get yourself into. Read them again, if you need to. This is not a beginner kit, and certainly wasn't prepared for the build when I did Grey One's F45's last year.
    Next, clean flash from the shells, pilots, etc. A nice set of fine needle files is essential for this build.
    After the shells (which are nicely cast, and requires very little cleanup) are cleaned up, grab your favorite pin vise, a #80 drill bit, and start drilling. I shaved all the grabs off my pair, but this is optional. The handrails on the front, rear and side all need holes drilled. The stirrups & jack pads locations need to be drilled--since mine will be fully super-detailed, I drilled for all grabs, and lift rings as well. The sar/Kaslo kit thoughtfully included faint indentions at drill locations for each part, making drilling a breeze. As if drilling 74 holes per shell is a breeze.... :rolleyes:

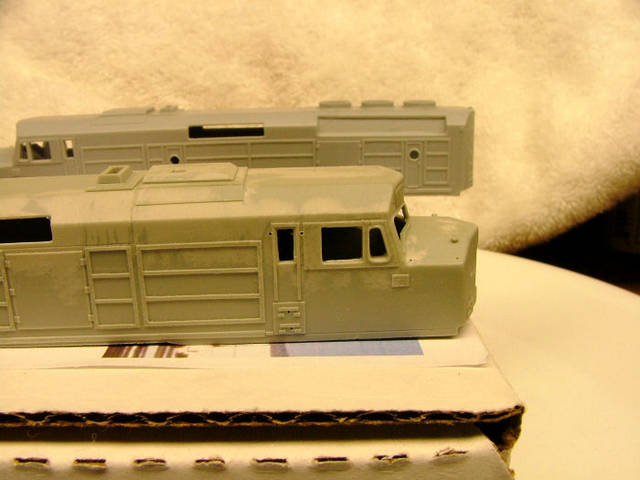

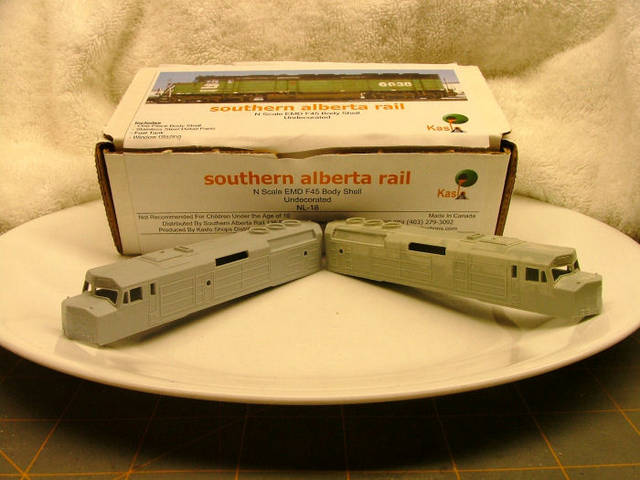

    Here's the shells, as they are now. They are cleaned, shaved, drilled,a nd ready to start detail part installation:

    [​IMG]

    The handrails, and grabs are all shaved/drilled, in this different angle:

    [​IMG]

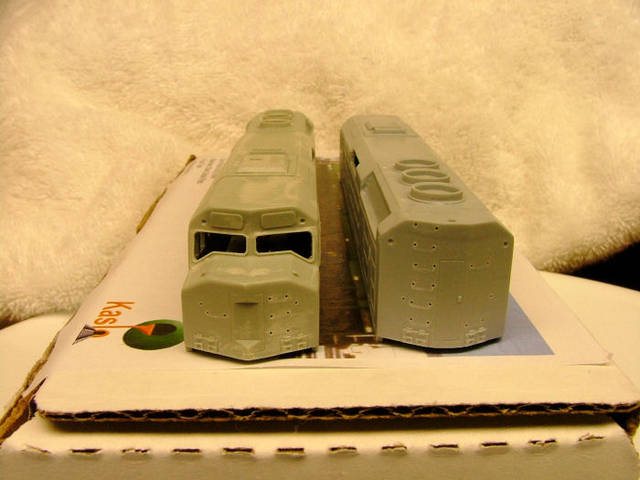

    Another view of the nose and tail ends:

    [​IMG]

    I figure I'll finish these about a month or so before Athearn finally announces these in N scale for the masses....;-)

  2. Willyboy

    Willyboy TrainBoard Supporter

    656
    51
    16
    WOW! I am looking forward to seeing this project to the end. Drill 74 holes PER SHELL...WOW!

  3. bfc1230

    bfc1230 TrainBoard Member

    250
    2
    20
    Murphy's law.

    what road numbers are you doing in GN?

  4. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    22,014
    27,407
    253
    438 and 440.
    It's too bad engine 426 was an SD45--both 426 and 440 are great Chrysler big blocks!

    Yep, 74 each shell to do all the grabs, lift rings, etc.
    And both engines used the same bit. Amazingly, it's not broken. Yet.;)

  5. mavrick0

    mavrick0 TrainBoard Member

    504
    0
    22
    I keep looking at the SD40-2F kit sitting at one of the shops near me so I can do a CP redbarn so I'm going to keep an eye on this thread and see some of the techniques used and see if I want to tackle this myself... lol.

  6. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    22,014
    27,407
    253
    The kit should be quite similar. Grant and the Kaslo krew did a great job on these kits!

  7. Harry E. Dinsen

    Harry E. Dinsen TrainBoard Member

    10
    2
    12
    Harry here in Colorado Springs ...

    Are there any in HO scale? I have three F45's and one FP45 -- the FP and one F45 are powered, the other pair unpowered -- I've been looking and hoping for an F45/SD45 frame and motor with trucks to power at least one of the other pair ... no luck. Neither of the owners of the two remaining mr hobby shops here in the Springs have any idea where there might be one or two available -- except e-bay and I avoid that like the flu...!
    # # #
    hed

  8. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    22,014
    27,407
    253
    Athearn announced F45's very recently in HO.... And the one they showed was a GN F45!
    :)

  9. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    22,014
    27,407
    253
    F45 build, part 2

    The next step is to fit the bare shell to the mechanism. I used a late-production SD40 chassis, and these go for great buys especially in Conrail, and other roads.

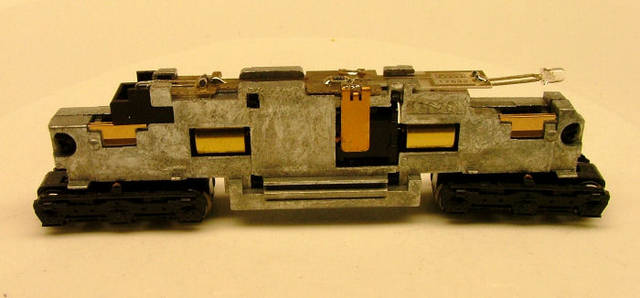

    Here's the bare chassis, awaiting the shell to be fitted:

    [​IMG]

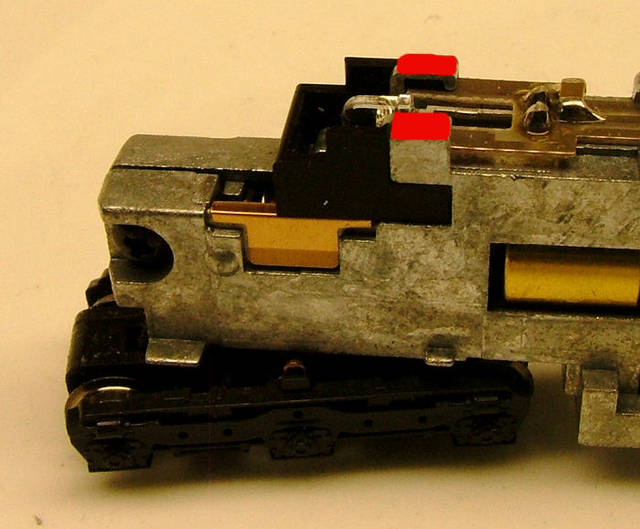

    A test-fit of the shell shows the nose is about 1/32" too tall. The culprit is a small part of the mech frame that protrudes too high. Here's that area, to be filed down:

    [​IMG]

    After marking the area to be filed, and removing the light board, I sealed the mech with electrical tap, to preclude metal filings from entering the mech. This is really best done with the mech totally disassembled, but I am lazy like that! :p

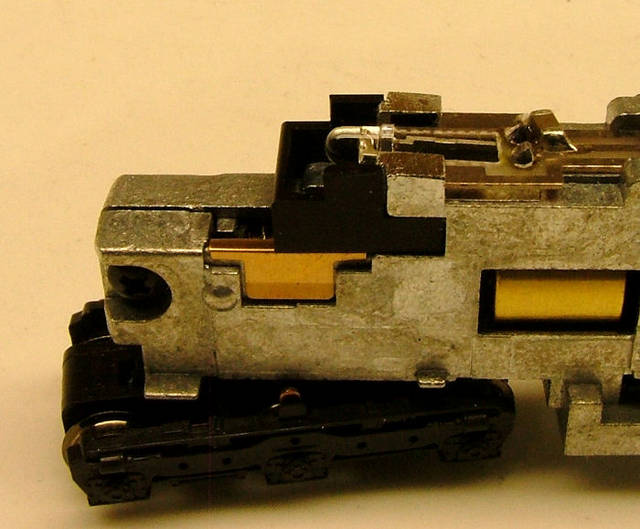

    Filed:

    [​IMG]

    Shell spacers are next. They are in the kit as part of a sheet of the resin material, basically flash, that holds several parts all together. They need to be removed fromt he sheet, cleaned up, and test-fitted to the mech.
    I found mine were too tight, so the file was again used, and filing a little, test-fit, file some more--use small increments of material removal, to ensure a gently snug, but not-too-loose fit. After the spacers slip over the mech in the desired places, ten test -fit the shell. The spacers again may need trimming, using the small increment method again to ensure too much material is not removed.

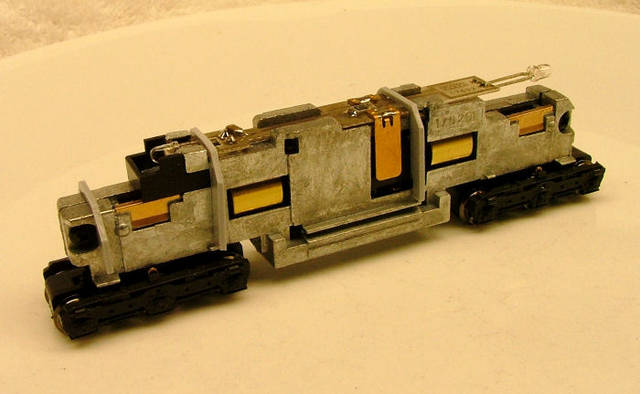

    When the spacers are to your liking, fit the spacers on the mech:

    [​IMG]

  10. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    22,014
    27,407
    253
    F45 build part 2, cont'd

    I used the factory "notches" in the mech/light board to fit the spacers. This is to ensure the shell doesn't slide around on the finished locomotive.

    Next, test-fit the shell again, and sight down the length of the side sills. Look for any bulges. The sill should be rifle-bore straight. File away material as necessary from the spacers to achieve a straight sill.

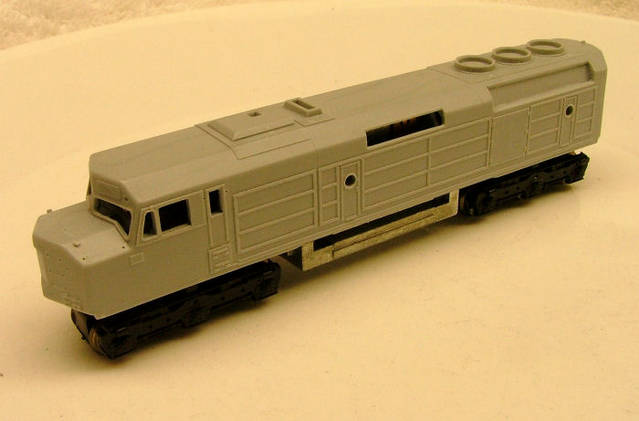

    When you are happy with the fit, test-fit the shell, centering the mech under the shell:

    [​IMG]

    Pick up the locomotive, after fitting the shell, and be cautious not to slide it around. Grab your favorite CA, and add a drop inside the shell to each spacer. Allow to set a minute, and remove the shell. It is important to make completely sure the spacers are aligned correctly, and didn't move when you removed the shell. Make small adjustments if necessary. Add enough adhesive to permanently fasten the spacers into the shell.

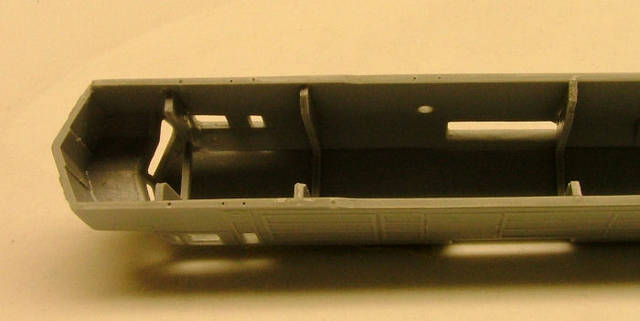

    Spacers secured:

    [​IMG]

    I used a bit of CA accelerator to cure the CA, and allowed a few seconds for it to work its magic. After the adhesive is cured, fit the shell again, it should be level end-to-end, side-to-side, and centered on the trucks.

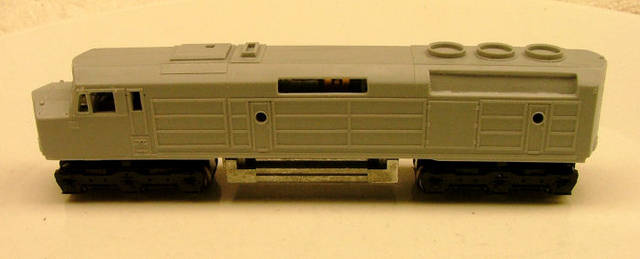

    It should now look like this:

    [​IMG]

    Stay tuned for more to come soon!
